Easy UPS 3L 250kVA 400V 3:3 UPS | 5×8 Start-Up | 1-Year Warranty | E3LUPS250KHS
The Easy UPS 3L 250kVA 400V 3:3 UPS (E3LUPS250KHS) is a high-capacity three-phase online uninterruptible power supply designed to provide reliable power protection for data centers, commercial buildings, industrial facilities, and other mission-critical applications. It delivers 250kVA of three-phase power at 400V and uses double-conversion online technology to provide stable, conditioned power to connected equipment.
The Easy UPS 3L combines a compact footprint with robust electrical performance, flexible parallel and redundant configurations, and simplified deployment. The 5×8 startup service is included, while Schneider Electric’s Smart Test mode helps reduce startup time and commissioning costs. The UPS is also designed for integration with Schneider Electric’s EcoStruxure power-management ecosystem.
- 250kVA rated power capacity
- 400V three-phase input and output
- 3:3 three-phase configuration
- Double-conversion online UPS topology
- 5×8 startup service included
- Smart Test mode for simplified commissioning
- Compact footprint
- Parallel and redundant configuration capability
- EcoStruxure connected architecture
- Designed for critical infrastructure applications
Call for Price
- 2 to 3 days-delivery
Speedy and reliable parcel delivery!
For Immediate delivery
For urgent delivery requirements, please contact our sales team. Standard shipping is typically within 2–3 days, with back-to-back orders taking 4–5 weeks. Product images are for illustrative purposes only.
Request a Quote
Documents
Click Here For Product Data Sheet
Product Description
Easy UPS 3L 250kVA 400V 3:3 UPS (E3LUPS250KHS)
The Easy UPS 3L 250kVA 400V 3:3 UPS (E3LUPS250KHS) is a high-capacity three-phase online UPS designed to deliver dependable power protection for critical electrical and IT infrastructure. With a rated capacity of 250kVA, the UPS is suitable for data centers, server rooms, industrial facilities, commercial buildings, healthcare environments, telecommunications infrastructure and other applications where reliable power continuity is essential.
The E3LUPS250KHS operates in a 3:3 three-phase configuration with a nominal 400V input and output. Its online double-conversion architecture continuously conditions incoming electrical power, helping protect connected equipment from common power disturbances while providing a stable output.
Schneider Electric positions the Easy UPS 3L as a solution combining competitive electrical specifications with a compact footprint. The platform is designed for easy deployment, configuration, startup, operation and service, making it suitable for organizations seeking scalable three-phase power protection without unnecessary installation complexity.
The UPS includes 5×8 startup service. Schneider Electric also incorporates Smart Test mode, which is designed to facilitate testing and help reduce deployment time and startup costs during commissioning.
The Easy UPS 3L platform supports parallel and redundant configurations, providing flexibility for installations that require additional capacity or higher availability. This makes the 250kVA model suitable for critical applications where power infrastructure needs to be scalable and resilient.
The E3LUPS250KHS is also designed for connectivity with Schneider Electric’s EcoStruxure architecture, supporting modern power-management and monitoring environments.
With its 250kVA capacity, 400V three-phase operation, online double-conversion topology, 3:3 configuration and 5×8 startup service, the APC Easy UPS 3L 250kVA is a suitable solution for large-scale commercial, industrial and data-center power-protection requirements.
Key Features
- 250kVA power capacity
- 400V three-phase operation
- 3:3 UPS configuration
- Double-conversion online topology
- 5×8 startup service
- Smart Test mode
- Compact footprint
- Parallel configuration capability
- Redundant configuration capability
- EcoStruxure connected architecture
- Designed for critical infrastructure
- Easy deployment and serviceability
TECHNICAL SPECIFICATIONS
Click Here For Product Data Sheet
| Overview | |
|---|---|
| Presentation | Easy-to-configure, easy-to-use and easy-to-service 250 kVA 3 phase UPS with an exceptional combination of competitive specifications, compact footprint, and highly available parallel and redundant designs. The EcoStruxure connected Schneider Electric Easy UPS 3L is the easy choice for business continuity on your shop floor or in your electrical room. Includes 5×8 start-up service. |
| Main | |
| Main input voltage | 400 V AC 3 phases |
| Other input voltage | 380 V 415 V |
| Maximum input current | 451 A |
| Max short time withstand current | 35 kA |
| Input harmonic distortion | Less than 3 % for full load |
| Load power factor | 0.5 leading to 0.5 lagging without derating |
| Efficiency at full load | 323…477 V |
| Input frequency | 40…70 Hz |
| Output voltage | 400 V AC 3 phases |
| Other output voltage | 380 V 415 V |
| Rated power in W | 250 kW |
| Rated power in VA | 250 kVA |
| Maximum configurable power in VA | 250 kVA |
| Maximum configurable power in W | 250 kW |
| Output harmonic distortion | < 2% linear load and < 4% non-linear load |
| Output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| UPS topology | Double conversion online |
| Output frequency | 50 Hz sync to mains 60 Hz sync to mains |
| Complementary | |
| Maximum short-circuit current | 35 kA |
| Battery type | Lead-acid external |
| Control panel | Touch screen LCD user interface |
| Color | White (RAL 9003) |
| Height | 197 cm |
| Width | 60 cm |
| Depth | 85 cm |
| Product weight | 425 kg |
| USB compatible | Yes |
| Provided equipment | Dust filter Installation manual Start-up service |
| Range of product | Easy UPS 3L |
| Product or component type | Uninterruptible power supply (UPS) |
| Environment | |
| Product certification | CE EAC RCM |
| Ambient air temperature for operation | 0…30 °C |
| Ambient air temperature for storage | -25…55 °C |
| Storage altitude | 0…14999.8 m |
| IP protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage relative humidity | 0…95 % non-condensing |
| Acoustic level | 70 dB |
| Heat dissipation | 49488 Btu/h |
| Operating altitude | 0…4921 ft |
| Batteries & Runtime | |
| Battery type | External battery system |
| Battery voltage | +/- 216…+/- 300 V |
| Discharge battery voltage | +/- 172.8…+/- 240 V |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2117 mm |
| Package 1 Width | 1000 mm |
| Package 1 Length | 800 mm |
| Package 1 Weight | 470 kg |
| Contractual warranty | |
| Warranty (in months) | 12 |
Related products
APC Back-UPS 2200VA 230V Line-Interactive UPS | AVR | 4 Schuko Outlets | 2-Year Warranty | BX2200MI-GR
In stock

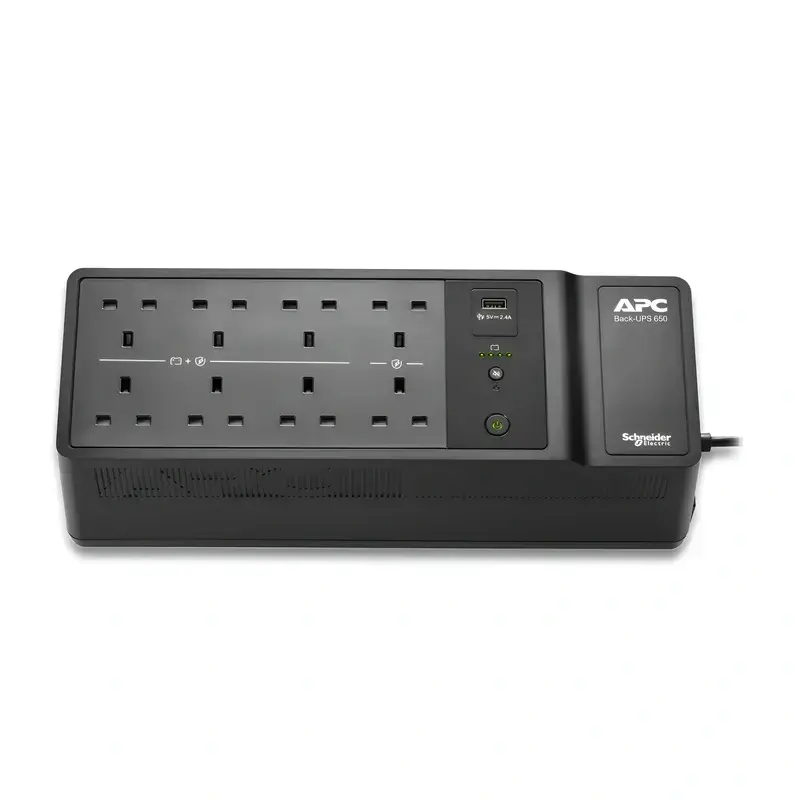

APC Back-UPS 650VA 230V 400W | 8 BS 1363 Outlets | USB | 2-Year Warranty | BE650G2-UK
