Easy UPS 3S 20kVA 400V 3:1 | 3 Internal 7Ah Battery Strings | 30-Min Runtime | 3-Phase Input | 3-Phase Output | 1-Year Warranty | E3SUPS20K3IB2

Documents

Click Here For Product Data Sheet

Product Description

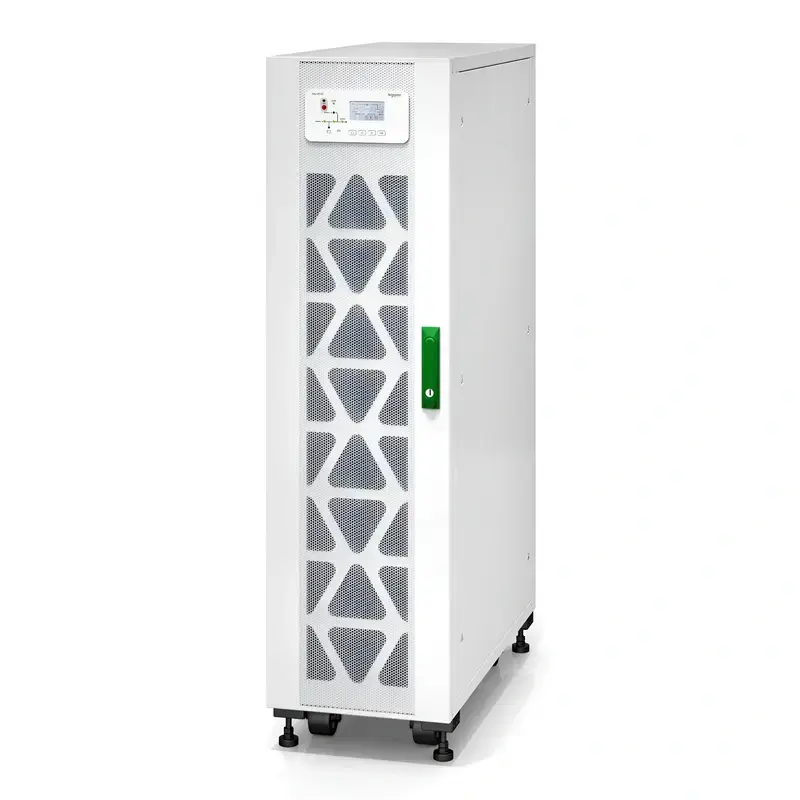

Easy UPS 3S 20kVA 400V 3:1 UPS (E3SUPS20K3IB2)

The Easy UPS 3S 20kVA 400V 3:1 UPS (E3SUPS20K3IB2) is a high-capacity three-phase uninterruptible power supply designed to provide dependable power protection for critical electrical and IT infrastructure. With a 20kVA/20kW capacity, double-conversion online topology, and integrated battery system, it provides continuous power conditioning and backup power for applications where electrical continuity is essential.

This model is configured for 3-phase input and 3-phase output and supports 380V, 400V, and 415V operation. The 3:1 configuration is designed for applications requiring three-phase input and three-phase output. Schneider Electric’s technical documentation specifies an input voltage range of 304V to 477V for the 400V-class 3:1 UPS models.

The UPS uses double-conversion online technology to continuously regulate and condition incoming electrical power before delivering power to connected equipment. This architecture helps protect critical loads from voltage variations, electrical disturbances, and interruptions. Schneider Electric identifies the Easy UPS 3S as a solution designed to make business continuity easier for small and medium data centers and electrical rooms.

The E3SUPS20K3IB2 incorporates three internal 7Ah modular battery strings. The integrated battery configuration provides approximately 30 minutes of runtime under the specified operating conditions. The modular battery arrangement also forms part of the Easy UPS 3S internal-battery architecture.

For installation environments where dust and airborne contaminants may be a concern, this Easy UPS 3S configuration includes a dust filter and conformance-coated boards. These features help make the UPS suitable for electrical rooms and other environments where additional protection from environmental conditions may be beneficial.

The UPS includes a built-in maintenance bypass, allowing maintenance procedures to be performed while maintaining the appropriate power path for connected loads. Schneider Electric’s technical specifications also identify a 3:1 crest factor of 3:1 and output harmonic distortion of less than 3% for linear loads.

For systems requiring additional capacity or redundancy, the Easy UPS 3S supports parallel operation of up to four UPS units. Schneider Electric also identifies extended runtime options and EcoStruxure IT integration as features of the Easy UPS 3S platform.

The Easy UPS 3S 20kVA 400V 3:1 is therefore well suited to small and medium data centers, electrical rooms, industrial environments, and other applications requiring high-capacity three-phase online power protection with integrated batteries and extended runtime capability.

The Easy UPS 3S 20kVA platform is covered by a 1-year warranty in the referenced Schneider Electric regional e-shop information. Schneider Electric also offers a separate 1-year on-site warranty extension for Easy UPS 3S 20kVA UPS systems.

Key Features

• 20kVA / 20kW power capacity
• 400V three-phase UPS
• 3-phase input and 3-phase output
• 3:1 UPS configuration
• Double-conversion online technology
• Three internal 7Ah modular battery strings
• Approximately 30 minutes runtime
• 380V / 400V / 415V voltage support
• Built-in maintenance bypass
• Up to four UPS units can be operated in parallel
• Dust filter included
• Conformance-coated boards
• Extended runtime options available
• EcoStruxure IT compatible
• Designed for data centers and electrical rooms
• 1-year warranty
