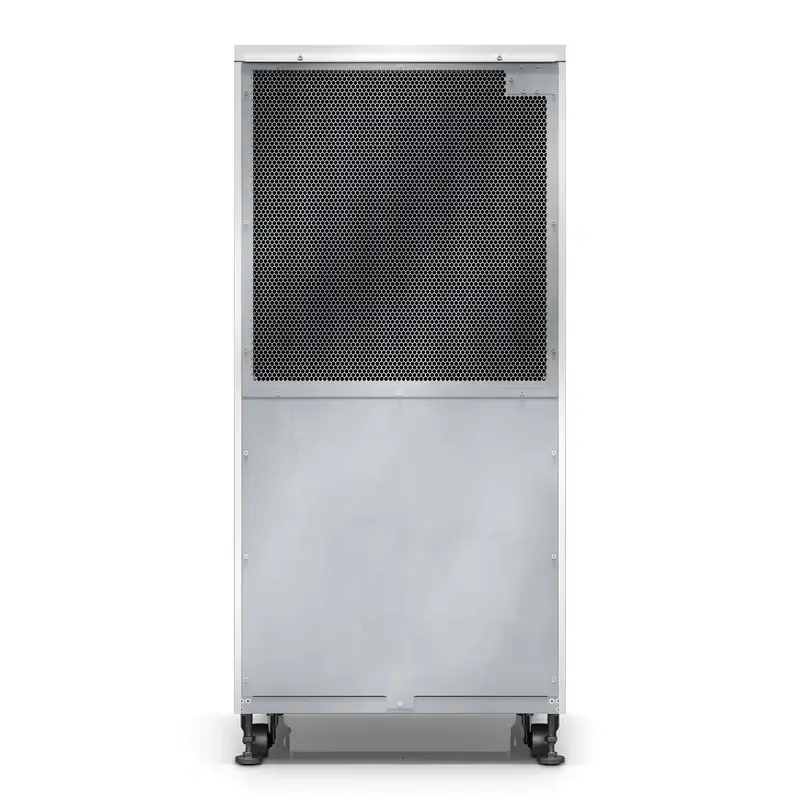

Easy UPS 3M 200kVA 400V 3:3 UPS | External Batteries | 5×8 Start-Up | 1-Year Warranty | E3MUPS200KHS
The Easy UPS 3M 200kVA 400V 3:3 UPS (E3MUPS200KHS) is a high-capacity three-phase online UPS designed to provide reliable power protection for data centers, computer rooms, industrial facilities, telecommunications infrastructure, and other business-critical applications. It delivers 200kVA/200kW of power with 400V three-phase input and output, double-conversion online technology, and an external battery system for flexible runtime configuration. The UPS includes 5×8 start-up service and is EcoStruxure-ready for cloud-based monitoring and management.
- 200kVA / 200kW rated power
- 400V three-phase input and output
- 3:3 three-phase configuration
- Double-conversion online topology
- External battery system
- Batteries sold separately
- 5×8 start-up service included
- EcoStruxure-ready
- Compatible with Galaxy Lithium-ion battery cabinets
- Parallel operation of up to 6 UPS units
- Easy Loop test capability
- Built-in static bypass
- Touchscreen LCD user interface
- Pre-installed Network Management Card 3
- Dust filter included
- Installation guide included
- IP20 protection rating
- Optional IP30, IP40 and IPX2 protection kits
- 1-year warranty
Call for Price
- 2 to 3 days-delivery
Speedy and reliable parcel delivery!
For Immediate delivery
For urgent delivery requirements, please contact our sales team. Standard shipping is typically within 2–3 days, with back-to-back orders taking 4–5 weeks. Product images are for illustrative purposes only.
Request a Quote
Documents
Click Here For Product Data Sheet
Product Description
Easy UPS 3M 200kVA 400V 3:3 UPS (E3MUPS200KHS)
The Easy UPS 3M 200kVA 400V 3:3 UPS (E3MUPS200KHS) is a high-capacity three-phase online uninterruptible power supply designed to provide dependable power protection and business continuity for data centers, server rooms, industrial facilities, telecommunications infrastructure, healthcare environments, commercial buildings, and other business-critical applications. With a 200kVA/200kW rated capacity, it is the highest-capacity model in the Easy UPS 3M 400V external-battery range.
The E3MUPS200KHS uses double-conversion online technology to provide regulated and conditioned power to connected equipment. It operates in a 3:3 three-phase configuration with 400V nominal input and output, while also supporting 380V and 415V three-phase configurations. Schneider Electric specifies an input voltage range of 342V to 477V and an input frequency range of 40–70Hz.
With a rated output of 200kVA / 200kW, the UPS is designed for demanding critical-power applications. Schneider Electric specifies an input power factor of 0.99 and input harmonic distortion of less than 3% at full load. The maximum input current is specified at 336A.
The E3MUPS200KHS is designed for an external battery system. Batteries are not included with this SKU, allowing the battery solution to be selected according to the required backup runtime and installation requirements. The system supports lead-acid external batteries and is also compatible with Galaxy Lithium-ion battery cabinets.
The UPS includes 5×8 start-up service, providing professional start-up support as part of the product configuration. Schneider Electric specifies the supplied equipment as including a dust filter, installation guide, and start-up service.
The Easy UPS 3M 200kVA is EcoStruxure-ready, supporting cloud-based monitoring and management of the UPS and power infrastructure. The E3MUPS200KHS also includes a pre-installed Network Management Card 3 for network connectivity and management.
For applications requiring additional capacity or redundancy, the E3MUPS200KHS supports parallel operation of up to six Easy UPS 3M UPS units. This enables scalable configurations for increased capacity and higher availability.
The Easy Loop test allows UPS performance to be verified before the load is connected, without requiring a load bank. This feature can simplify commissioning and help reduce installation complexity.
The UPS provides a built-in static bypass, sine-wave output, and a 3:1 crest factor. Schneider Electric specifies output harmonic distortion of less than 3% for linear loads and less than 5% for non-linear loads. Output overload capability is 125% for 10 minutes and 150% for 60 seconds.
The standard enclosure provides an IP20 protection rating. Optional IP30, IP40, and IPX2 protection kits are available for installations requiring additional environmental protection.
The E3MUPS200KHS has a compact footprint for its 200kVA capacity, measuring approximately 1300mm high × 600mm wide × 850mm deep. The product weight is approximately 304kg.
The Easy UPS 3M 200kVA 400V 3:3 UPS (E3MUPS200KHS) is therefore well suited to organizations requiring high-capacity three-phase online power protection, flexible external battery configurations, scalable parallel operation, network management, and professional start-up support.
Key Features
- 200kVA / 200kW power capacity
- 400V three-phase input and output
- 3:3 three-phase UPS configuration
- Double-conversion online technology
- External battery configuration
- Batteries sold separately
- 5×8 start-up service
- EcoStruxure-ready
- Galaxy Lithium-ion battery cabinet compatibility
- Parallel operation up to 6 UPS units
- Easy Loop test
- Built-in static bypass
- Touchscreen LCD user interface
- Pre-installed Network Management Card 3
- 125% overload for 10 minutes
- 150% overload for 60 seconds
- 0.99 input power factor
- Less than 3% input harmonic distortion at full load
- IP20 standard protection
- Optional IP30, IP40 and IPX2 protection kits
- 1-year warranty
TECHNICAL SPECIFICATIONS
Click Here For Product Data Sheet
| Overview | |
|---|---|
| Presentation | Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 200 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. It is supplied without batteries, so you can easily customize your battery solution. Includes 5×8 start-up service. |
| Main | |
| Main input voltage | 400 V AC 3 phases 380 V AC 3 phases 415 V AC 3 phases |
| Other input voltage | 380 V 415 V |
| Maximum input current | 336 A |
| Max short time withstand current | 10 kA |
| Input harmonic distortion | Less than 3 % for full load |
| Load power factor | 0.5 leading to 0.5 lagging without derating |
| Cos phi | 0.99 |
| Efficiency at full load | 342…477 V |
| Input frequency | 40…70 Hz |
| Output voltage | 400 V AC 3 phases 380 V AC 3 phases 415 V AC 3 phases |
| Other output voltage | 380 V 415 V |
| Rated power in W | 200 kW |
| Rated power in VA | 200 kVA |
| Harmonic distortion | Less than 3 % |
| Maximum configurable power in VA | 200 kVA |
| Maximum configurable power in W | 200 kW |
| Output harmonic distortion | < 3% linear load and < 5% non-linear load |
| Output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| Output voltage tolerance | +/- 1 % |
| UPS topology | Double conversion online |
| Waveform type | Sine wave |
| Output frequency | 50 Hz sync to mains 60 Hz sync to mains |
| Complementary | |
| Battery type | Lead-acid external sold separately |
| Control panel | Touch screen LCD user interface |
| UPS connectivity | Pre-installed network management card 3 |
| Color | White (RAL 9003) |
| Height | 130 cm |
| Width | 60 cm |
| Depth | 85 cm |
| Product weight | 304 kg |
| USB compatible | Yes |
| Provided equipment | Dust filter Installation guide Start-up service |
| Range of product | Easy UPS 3M |
| Product or component type | Uninterruptible power supply (UPS) |
| Environment | |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -25…55 °C |
| Storage altitude | 0…15240 m |
| IP protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage relative humidity | 0…95 % non-condensing |
| Acoustic level | 72 dBA |
| Heat dissipation | 34121 Btu/h |
| Operating altitude | 0…4921 ft |
| Batteries & Runtime | |
| Battery type | External battery system |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 150 cm |
| Package 1 Width | 97.5 cm |
| Package 1 Length | 72.5 cm |
| Package 1 Weight | 338 kg |
| Contractual warranty | |
| Warranty (in months) | 12 |
Related products
APC Easy UPS 3S 10kVA 400V Three-Phase Online UPS | 3:3 Configuration | Internal Batteries | 40-Minute Runtime | E3SUPS10KHB2
In stock
Easy UPS 3S 20kVA 400V 3:1 | 3 Internal 7Ah Battery Strings | 30-Min Runtime | 3-Phase Input | 3-Phase Output | 1-Year Warranty | E3SUPS20K3IB2
In stock
HPE Mobile USB DVD-RW Optical Drive | External USB | DVD±RW Super-Multi | 1-Year Warranty | 701498-B21
In stock
NVIDIA RTX 4000 Ada 20GB Graphics Card (4X61P39479) | 4×DisplayPort 1.4 | Ada Lovelace Architecture | 8K@120Hz | 130W | 3-Year Warranty
Available on backorder

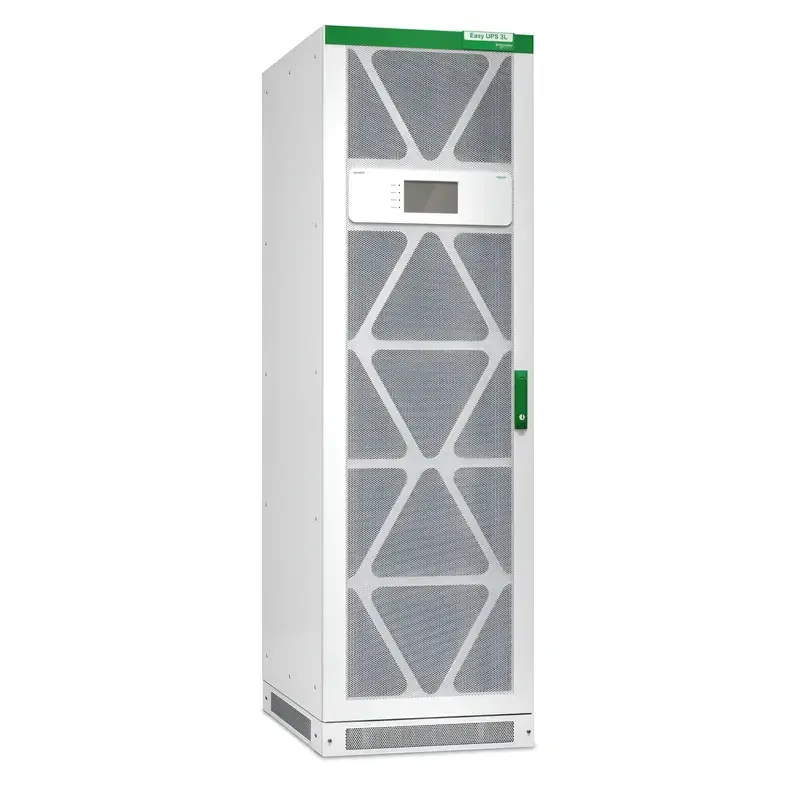

Schneider Electric Easy UPS 3L 300kVA 400V 3:3 UPS | 5×8 Start-Up | 1-Year Warranty | E3LUPS300KHS
