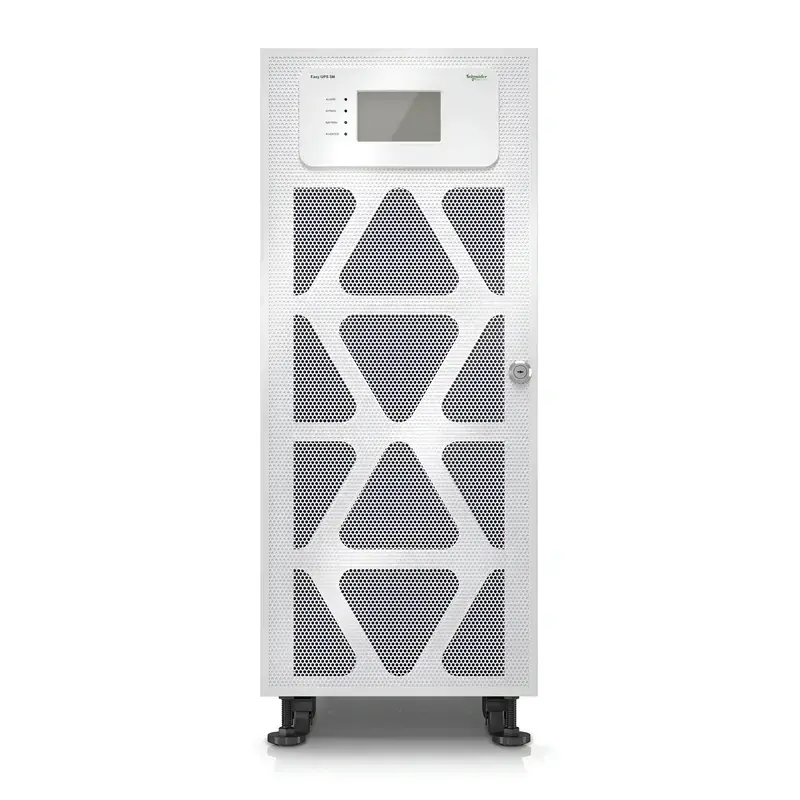

Easy UPS 3M 100kVA 400V 3:3 UPS | External Batteries | 5×8 Start-Up | 1-Year Warranty | E3MUPS100KHS
The Easy UPS 3M 100kVA 400V 3:3 UPS (E3MUPS100KHS) is a high-capacity three-phase online UPS designed to provide reliable power protection for data centers, server rooms, industrial facilities, telecommunications, healthcare, and other business-critical applications. It delivers 100kVA/100kW of power with 400V three-phase input and output, double-conversion online technology, and an external battery system for flexible runtime configuration. The UPS includes 5×8 start-up service and supports EcoStruxure monitoring and management.
- 100kVA / 100kW rated power
- 400V three-phase input and output
- 3:3 three-phase configuration
- Double-conversion online topology
- External battery system
- Batteries sold separately
- 5×8 start-up service included
- EcoStruxure-ready
- Compatible with Galaxy Lithium-ion battery cabinets
- Parallel operation for capacity or redundancy
- Built-in static bypass
- Easy Loop test capability
- Dust filter included
- Installation guide included
- IP20 protection rating
- Optional IP30, IP40 and IPX2 kits available
- 1-year factory warranty
Call for Price
- 2 to 3 days-delivery
Speedy and reliable parcel delivery!
For Immediate delivery
For urgent delivery requirements, please contact our sales team. Standard shipping is typically within 2–3 days, with back-to-back orders taking 4–5 weeks. Product images are for illustrative purposes only.
Request a Quote
Documents
Click Here For Product Data Sheet
Product Description
Easy UPS 3M 100kVA 400V 3:3 UPS (E3MUPS100KHS)
The Easy UPS 3M 100kVA 400V 3:3 UPS (E3MUPS100KHS) is a high-capacity three-phase online uninterruptible power supply designed to provide dependable power protection and business continuity for data centers, computer rooms, manufacturing facilities, telecommunications infrastructure, healthcare environments, commercial buildings, and other critical applications. It provides 100kVA/100kW of rated power in a 3:3 configuration, making it suitable for demanding three-phase loads.
The E3MUPS100KHS uses double-conversion online technology to continuously condition incoming electrical power and provide a stable output to connected equipment. It supports 380V, 400V, and 415V three-phase input and output, with an input voltage range of 342V to 477V at full load. The UPS operates with a 40–70Hz input frequency range.
With a 100kVA/100kW power rating, the UPS is designed for high-demand electrical loads where reliable power continuity is essential. Schneider Electric specifies an input power factor of greater than 0.99 and total input harmonic distortion of less than 3% for linear loads.
The E3MUPS100KHS is specifically configured for an external battery system. Batteries are not included with this SKU, allowing the battery configuration to be selected according to the required backup runtime and installation requirements. Schneider Electric also identifies compatibility with Galaxy Lithium-ion battery cabinets, providing additional battery technology flexibility.
The UPS includes 5×8 start-up service, providing professional start-up support as part of the product configuration. It is also equipped with features intended to simplify installation, commissioning, operation, and servicing.

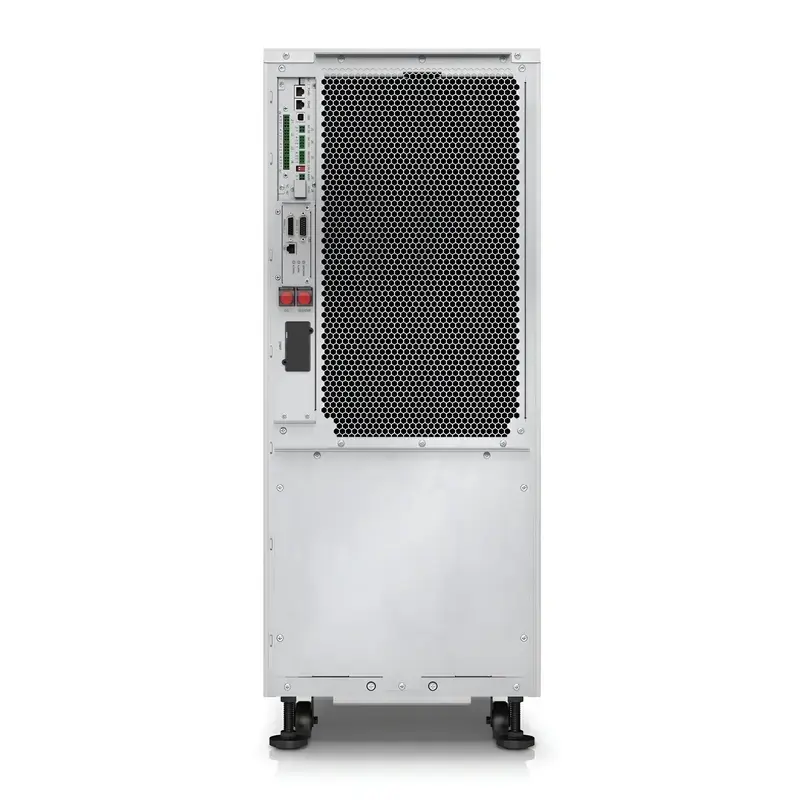

The Easy UPS 3M platform supports EcoStruxure software for monitoring and management, helping organizations monitor UPS performance and power infrastructure. The system also provides communication interfaces including RS485, USB, dry contacts, and Modbus TCP/IP, with SNMP available through an optional network management card.
For increased capacity or redundancy, the E3MUPS100KHS supports parallel operation of Easy UPS 3M units. Schneider Electric’s product documentation identifies parallel operation as a capability for capacity or redundancy applications.
The UPS includes an Easy Loop test that can verify UPS performance before the load is connected, helping simplify commissioning without requiring a load bank.
The system provides a built-in static bypass and supports an overload capacity of 125% for 10 minutes and 150% for 60 seconds. The output voltage tolerance is specified at ±1% under static conditions.
The standard enclosure provides an IP20 protection rating. Schneider Electric offers optional IP30, IP40, and IPX2 kits for installations requiring increased enclosure protection.
The 100kVA model uses a compact low-frame enclosure measuring approximately 915 × 360 × 850mm (H × W × D), with an unpackaged weight of approximately 145kg. Shipping dimensions are approximately 1140 × 475 × 965mm, with a shipping weight of approximately 169kg.
The Easy UPS 3M 100kVA 400V 3:3 UPS (E3MUPS100KHS) is therefore a suitable solution for organizations requiring high-capacity three-phase online power protection with flexible external battery configurations, scalable capacity or redundancy, and professional start-up support.
Key Features
- 100kVA / 100kW power capacity
- 400V three-phase input and output
- 3:3 three-phase UPS configuration
- Double-conversion online technology
- External battery configuration
- Batteries sold separately
- 5×8 start-up service
- EcoStruxure-ready
- Galaxy Lithium-ion battery cabinet compatibility
- Parallel operation for capacity or redundancy
- Built-in static bypass
- Easy Loop test
- 125% overload for 10 minutes
- 150% overload for 60 seconds
- Input power factor greater than 0.99
- Less than 3% THDI for linear loads
- IP20 standard protection
- Optional IP30, IP40 and IPX2 protection kits
- 1-year factory warranty
TECHNICAL SPECIFICATIONS
Click Here For Product Data Sheet
| Overview | |
|---|---|
| Presentation | Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 100 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. It is supplied without batteries, so you can easily customize your battery solution. Includes 5×8 start-up service. |
| Main | |
| Main input voltage | 400 V AC 3 phases 380 V AC 3 phases 415 V AC 3 phases |
| Other input voltage | 380 V 415 V |
| Maximum input current | 177 A |
| Max short time withstand current | 10 kA |
| Input harmonic distortion | Less than 3 % for full load |
| Load power factor | 0.5 leading to 0.5 lagging |
| Cos phi | 0.99 |
| Efficiency at full load | 342…477 V |
| Input connection | 1 hard wire 5-wire (3P + N + E) |
| Input frequency | 40…70 Hz |
| Output voltage | 400 V AC 3 phases 380 V AC 3 phases 415 V AC 3 phases |
| Other output voltage | 380 V 415 V |
| Rated power in W | 100 kW |
| Rated power in VA | 100 kVA |
| Bypass type | Built-in static bypass |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 3 % |
| Maximum configurable power in VA | 100 kVA |
| Maximum configurable power in W | 100 kW |
| Output harmonic distortion | < 3% linear load and < 5% non-linear load |
| Output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| UPS topology | Double conversion online |
| Waveform type | Sine wave |
| Output frequency | 50 Hz sync to mains 60 Hz sync to mains |
| Complementary | |
| Battery type | Lead-acid external sold separately |
| Control panel | Touch screen LCD user interface |
| Free slot | 1 |
| UPS connectivity | Pre-installed network management card 3 |
| Color | White (RAL 9003) |
| Height | 91.5 cm |
| Width | 36 cm |
| Depth | 85 cm |
| Product weight | 145 kg |
| USB compatible | Yes |
| Provided equipment | Dust filter Installation guide Start-up service |
| Range of product | Easy UPS 3M |
| Product or component type | Uninterruptible power supply (UPS) |
| Environment | |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -25…55 °C |
| Storage altitude | 0…15240 m |
| IP protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage relative humidity | 0…95 % non-condensing |
| Acoustic level | 65 dBA |
| Heat dissipation | 18767 Btu/h |
| Operating altitude | 0…4921 ft |
| Batteries & Runtime | |
| Battery type | External battery system |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 112.000 cm |
| Package 1 Width | 48.000 cm |
| Package 1 Length | 96.000 cm |
| Package 1 Weight | 165.000 kg |
| Contractual warranty | |
| Warranty (in months) | 12 |
