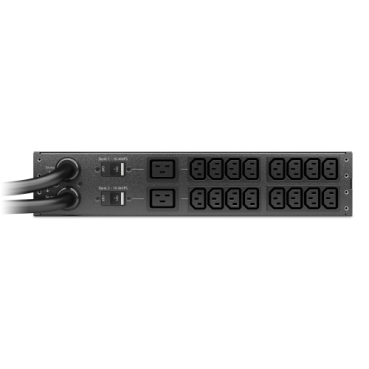

APC NetShelter Rack Automatic Transfer Switch ATS | 2U 32A 230V | Dual IEC 309 Inputs | 16x C13 + 2x C19 Outlets | AP4424A
APC NetShelter AP4424A Rack Automatic Transfer Switch (ATS) is a high-availability power management solution designed to provide redundant power protection for single-corded IT equipment. Featuring a compact 2U rack-mount design, 32A rated current, 230V operation, dual IEC 309 inputs, sixteen IEC C13 outlets, and two IEC C19 outlets, this ATS automatically transfers connected loads between power sources to maximize uptime and ensure continuous operation of critical infrastructure.
- 2U rack-mounted Automatic Transfer Switch (ATS)
- 32A rated current and 230V AC operation
- Dual IEC 309 inputs for redundant power sources
- 16 IEC C13 outlets and 2 IEC C19 outlets
- 7400VA maximum load capacity
- Automatic power source switching for high availability
- Integrated APC Network Management Card 3 (NMC3)
- Compatible with EcoStruxure IT management platforms
4,911.14 AED Excl. of Tax
- 2 to 3 days-delivery
Speedy and reliable parcel delivery!
For Immediate delivery
For urgent delivery requirements, please contact our sales team. Standard shipping is typically within 2–3 days, with back-to-back orders taking 4–5 weeks. Product images are for illustrative purposes only.
Request a Quote
Documents
Click Here For Product Data Sheet
Product Description
APC NetShelter AP4424A Rack Automatic Transfer Switch
The APC NetShelter AP4424A Rack Automatic Transfer Switch (ATS) is designed to provide uninterrupted power delivery for critical single-corded equipment in enterprise IT environments. By continuously monitoring two independent power sources and automatically switching between them when necessary, the ATS helps improve infrastructure resilience and reduce downtime risks.
Built in a space-efficient 2U rack-mount form factor, the AP4424A supports a rated current of 32A and a maximum load capacity of 7400VA. The unit features dual IEC 309 input connections for redundant power feeds and sixteen IEC C13 outlets along with two IEC C19 outlets for protected equipment loads.
The fifth-generation NetShelter ATS platform enhances operational reliability through advanced monitoring, management, and security capabilities. The integrated APC Network Management Card 3 (NMC3) enables remote access, configuration, and monitoring through secure web interfaces, SNMP, and command-line management tools.
Additional enhancements include network port sharing, environmental monitoring integration, and modern cybersecurity features that help organizations manage distributed IT infrastructure more effectively. An integrated circuit breaker provides added protection for connected equipment, making the AP4424A suitable for data centers, edge computing deployments, telecommunications facilities, and enterprise server environments.
Fully compatible with APC EcoStruxure IT, the AP4424A provides centralized visibility and management of power infrastructure, helping IT teams maintain high availability and operational efficiency across critical systems.
Key Features
- Automatic transfer switching between redundant power sources
- 32A rated current and 230V operation
- 7400VA load capacity
- Dual IEC 309 power inputs
- 16 IEC C13 outlets and 2 IEC C19 outlets
- Integrated APC Network Management Card 3 (NMC3)
- Secure web, SNMP, and CLI management
- Network port sharing functionality
- Environmental monitoring support
- Compatible with EcoStruxure IT platforms
TECHNICAL SPECIFICATIONS
Click Here For Product Data Sheet
Main |
|
| Main Input Voltage | 230 V AC 1 phase |
| Product or component type | Automatic transfer switch |
| Main Output Voltage | 230 V AC 1 phase |
| Input Connection Type | IEC 60320 IEC 60309 32 A 2P + E |
| IEC 60320 | |
| Number of rack unit | 2U |
| Cable length | 2.43 m |
| Number of cables | 2 |
| Provided equipment | Mounting hardware |
| Rack mounting brackets | |
Physical |
|
| Colour | Black |
| Height | 88 mm |
| Width | 432 mm |
| Depth | 236 mm |
| Product weight | 6.94 kg |
| Mounting location | Front |
| Rear | |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| Mounting position | Horizontal |
Input |
|
| Network frequency | 50/60 Hz |
| permissible voltage | 207…253 V |
| Load capacity | 7400 VA |
Output |
|
| Max current draw | 32 A |
| Number of power socket outlets | 18 |
| Protection type | Circuit breaker |
Conformance |
|
| Product certifications | EN 55022 class A |
| FCC part 15 class A | |
| Standards | EN 55022 class A |
| FCC part 15 class A | |
Environmental |
|
| Ambient air temperature for operation | -5…45 °C |
| Relative humidity | 5…95 % |
| Operating altitude | 0…10000 ft |
| Ambient air temperature for storage | -25…65 °C |
| Storage Relative Humidity | 5…95 % |
Packing Units |
|
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 21.500 cm |
| Package 1 Width | 57.500 cm |
| Package 1 Length | 35.600 cm |
| Package 1 Weight | 7.125 kg |
Contractual warranty |
|
| Warranty (in months) | 24 |
