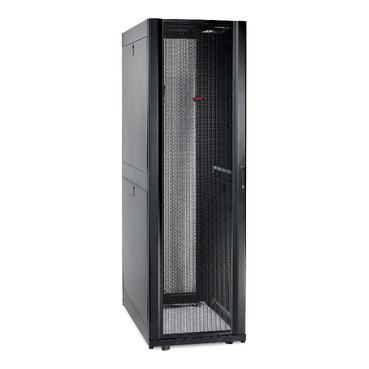

APC NetShelter SX Server Rack Enclosure | 48U | 600mm W x 1070mm D | Black Data Center Cabinet | AR3107
APC NetShelter SX AR3107 Server Rack Enclosure is a high-density rack enclosure designed to support efficient deployment and installation of IT equipment in enterprise and data center environments. Featuring a 48U rack height, durable black finish, and dimensions of 2258mm height, 600mm width, and 1070mm depth, this enclosure provides additional mounting capacity while maximizing usable rack space within the existing footprint.
- 48U rack enclosure for server and networking equipment
- Dimensions of 2258H x 600W x 1070D mm
- Black enclosure designed for enterprise environments
- Provides an additional 6U of mounting capacity compared to standard 42U racks
- Maximizes usable rack space within the same footprint
- Designed for rapid deployment and installation
- Suitable for high-density IT environments
- Industry-standard NetShelter SX rack platform
7,065.71 AED Excl. of Tax
- 2 to 3 days-delivery
Speedy and reliable parcel delivery!
For Immediate delivery
For urgent delivery requirements, please contact our sales team. Standard shipping is typically within 2–3 days, with back-to-back orders taking 4–5 weeks. Product images are for illustrative purposes only.
Request a Quote
Documents
Click Here For Product Data Sheet
Product Description

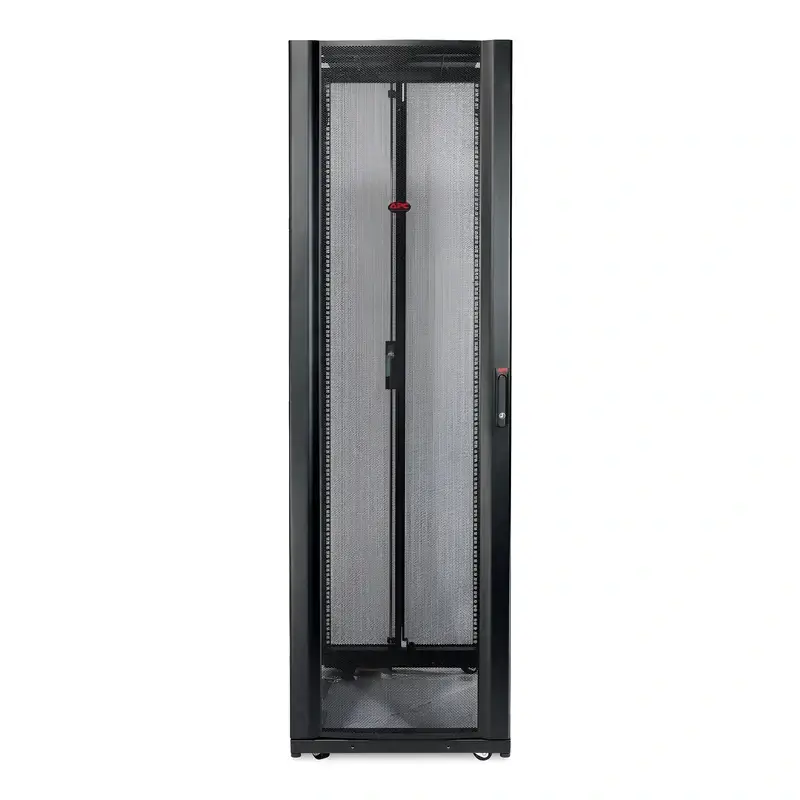

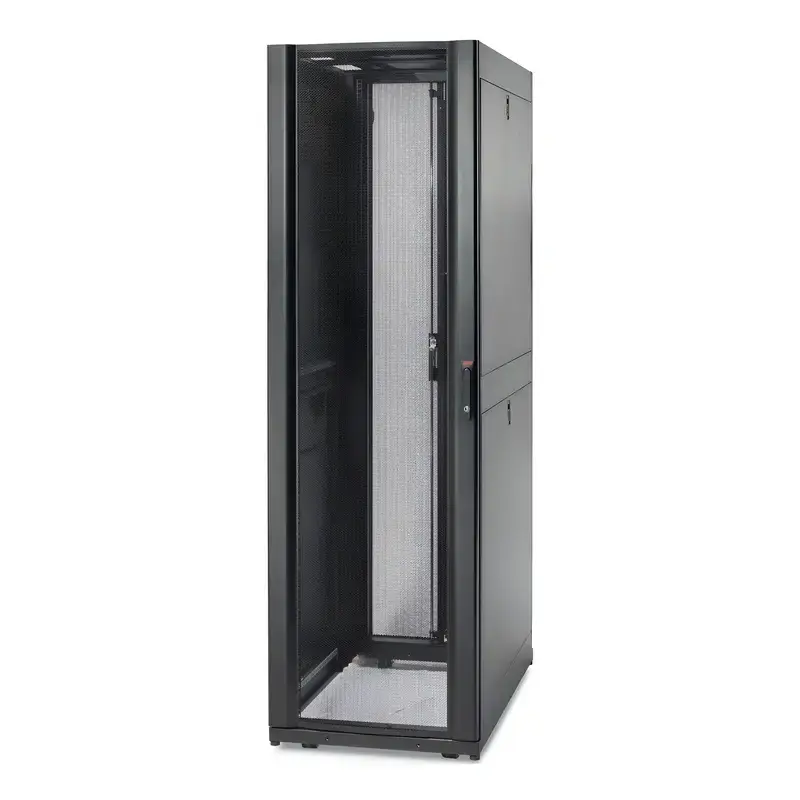

APC NetShelter SX AR3107 Server Rack Enclosure
The APC NetShelter SX AR3107 Server Rack Enclosure is designed to provide a versatile and scalable infrastructure solution for modern data centers, server rooms, and enterprise IT environments. As part of the industry-leading NetShelter SX family, it delivers the features and flexibility required to support high-density computing and networking deployments.
With a height of 48U, the AR3107 offers six additional rack units of mounting space compared to traditional 42U enclosures, enabling organizations to maximize equipment capacity without increasing the rack footprint. Measuring 2258mm in height, 600mm in width, and 1070mm in depth, the enclosure accommodates a wide range of servers, storage platforms, and networking devices.
The enclosure is engineered to simplify deployment and installation, helping reduce setup time while supporting efficient cable management and equipment integration. Its robust construction and industry-standard design make it suitable for demanding environments where reliability and scalability are essential.
Optimized for high-density applications, the AR3107 allows organizations to increase equipment density and make more efficient use of valuable data center floor space. The additional mounting capacity provides greater flexibility for future expansion and evolving infrastructure requirements.
Ideal for enterprise data centers, colocation facilities, and edge computing installations, the APC NetShelter SX AR3107 offers a dependable and space-efficient platform for housing critical IT equipment.
Key Features
- 48U rack enclosure for server and networking equipment
- Dimensions of 2258H x 600W x 1070D mm
- Black enclosure designed for enterprise environments
- Provides an additional 6U of mounting capacity compared to standard 42U racks
- Maximizes usable rack space within the same footprint
- Designed for rapid deployment and installation
- Suitable for high-density IT environments
- Industry-standard NetShelter SX rack platform
TECHNICAL SPECIFICATIONS
Click Here For Product Data Sheet
Overview |
|
| Presentation | Tall enclosure with 48U spaces for additional equipment. Compact width to optimize data center space. For low to medium density server and networking applications. |
Main |
|
| Product or component type | Rack enclosure |
| Number of rack unit | 48U |
| Provided equipment | Baying hardware |
| Key(s) | |
| Keyed-alike doors and side panels | |
| Leveling feet | |
| Mounting hardware | |
| Pre-installed casters | |
| Side panels | |
Physical |
|
| Height | 2258 mm |
| Width | 600 mm |
| Depth | 1070 mm |
| Product weight | 138.23 kg |
| Colour | Black |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Maximum mounting depth | 914.9 mm |
| Minimum mounting depth | 190.5 mm |
| Rack width | 19″ |
| Marking | 14 gauge EIA mounting rail |
| 16 gauge front door | |
| 16 gauge post | |
| 18 gauge rear door | |
| 18 gauge roof | |
| 18 gauge side panels | |
| Permanent permissible load | 1020.6 kg dynamic |
| 1701.0 kg static | |
Conformance |
|
| Standards | UL 2416 |
| UL 60950-1 | |
| EIA-310E | |
Packing Units |
|
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 238.5 cm |
| Package 1 Width | 75.2 cm |
| Package 1 Length | 115.6 cm |
| Package 1 Weight | 157.68 kg |
Contractual warranty |
|
| Warranty (in months) | 60 |
