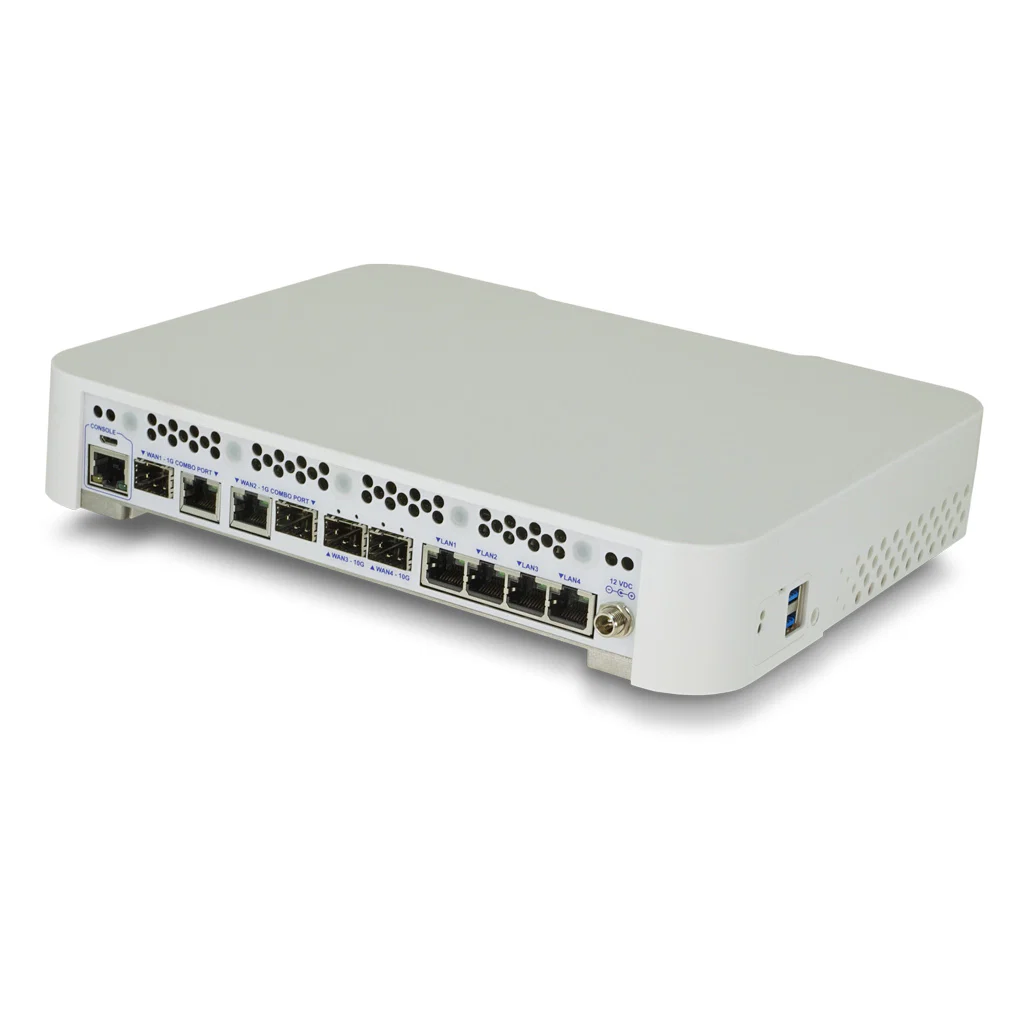

Netgate 6100 BASE pfSense+ Security Gateway
4,048.00 AED Excl. of Tax
- 2 to 3 days-delivery
Speedy and reliable parcel delivery!
For Immediate delivery
For urgent delivery requirements, please contact our sales team. Standard shipping is typically within 2–3 days, with back-to-back orders taking 4–5 weeks. Product images are for illustrative purposes only.
Request a Quote
The Netgate 6100 is an ideal edge gateway solution for any organization in need of versatile network connectivity with 1 to 10 Gbps flexible WAN/LAN connections and 8 GB of DDR4 memory to deliver exceptional throughput performance.
L3 Forwarding
- IPERF3 Traffic:Â 18.50 Gbps
- IMIX Traffic:Â 6.08Â Gbps
Firewall
(10k ACLs)
- IPERF3 Traffic: 9.93Â Gbps
- IMIX Traffic:Â 2.73 Gbps
IPsec VPN
(AES-GCM-128 w/QAT)
- IPERF3 Traffic:Â 1.77 Gbps
- IMIX Traffic:Â 552 Mbps
Netgate 6100 performance tests conducted with pfSense Plus software version 22.01
The Netgate 6100 will also be compatible with TNSR software. TNSR is a high-performance software router capable of producing considerable performance increases far beyond the limits of pfSense Plus software.
CPU:Â Quad-Core 2.2 GHz Intel Atom CPU, with integrated AES-NI and QAT (QuickAssist Technology) significantly improves encrypted throughput and increases RAM performance by up to 50%.

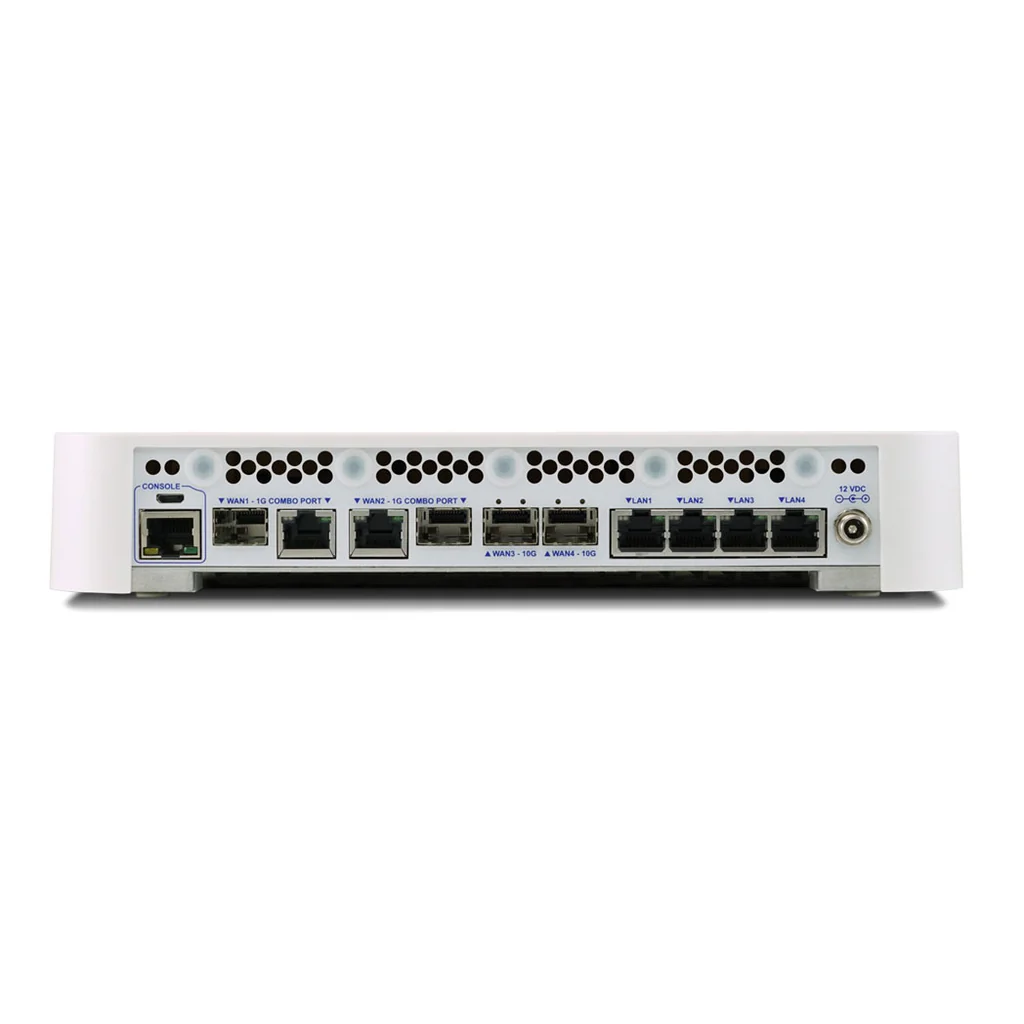

Network Ports:Â (2) 10 GbE SFP+ Ports, (2) 1 GbE Combo Ports (RJ45/SFP), and (4) discrete, unswitched 2.5 Gbps Ports allow for versatile WAN connectivity.
Storage:Â 21.3 GB eMMC (or optional 128 GB NVMe M.2 SSD)
Memory:Â 8 GB DDR4 RAM, DDR4 memory allows more stable, higher transfer rates for memory-intensive applications (e.g. IDS/IPS).
Cooling:Â The passive cooling system and low power draw of the Netgate 6100 provides efficient thermal management and silent operation expected from smaller devices despite its significantly higher performance.
pfSense Plus software provides the performance, flexibility, reliability and business assurance expected from leading secure networking applications:
- Up to 10 Gbps performance
- Flexible 3rd-party application options
- Traditional management mechanisms
- Proven reliability
- Complete business assurance support
All at a fraction of the cost of proprietary alternatives, pfSense Plus software is the perfect answer. Popular pfSense Plus use cases include load balancing, traffic shaping, captive portal, UTM device, DNS/DHCP Server, IDS/IPS, failover WAN, and much more.
Specifications
| CPU | Intel® Atom® C3558 with QAT, 4-core @ 2.2 GHz (Denverton family) |
| CPU Cores | Quad Core |
| Physical Network I/O ports | (2) 10 Gbps SFP+ cage (WAN)
(2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) “Combo Port” (WAN) (4) 2.5 Gbps RJ-45 “direct” (unswitched) ethernet (LAN) |
| Storage | 21.3 GB eMMC (onboard – soldered)
upgradable to 128 GB NVMe M.2 SSD with 6100 Max |
| Memory | 8 GB DDR4 w/o ECC, single channel |
| Physical Expansion Card Slots
|
|
| 1x Mini-PCie Slot
2x m.2 (Key-B slot) for NVMe (PCIe, USB2.0, USB3.0) |
|
| Console Port | 1 x auto-detect console port: “Cisco pinout” RJ45 + micro-USB (micro-USB cable included with each system) |

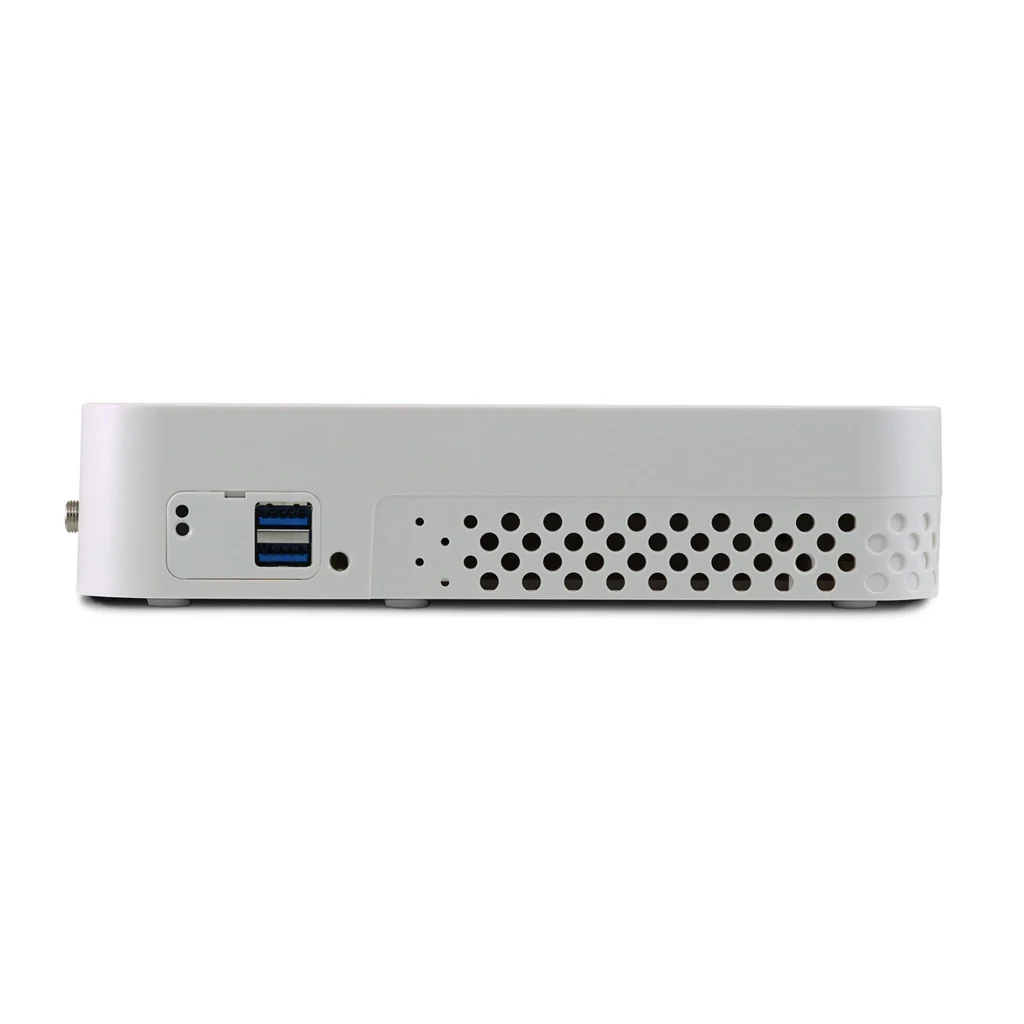

| USB Ports | 2x USB 3.0 jacks (USB-A female) Located on left side rear when viewed from system front |
| LED | 3x 4-color LEDs (RGB + amber) Software / bootloader controllable via Microchip MCU |
| Enclosure | Desktop – Aluminum, plastic, and steel enclosure.
10 x 7.88 x 1.88 inches 254 x 200 x 47.63 mm |
| Mounting |
Optional wall mount kit |
| Cooling | Passive |
| Power | External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector.
Specifications (not final): – AC Inlet: IEC320-C7 (2 PIN) – Power Cord: One US, UK, EU or ANZ power cord included – US Power Cord: NEMA 1-15-P to IEC320-C7 – UK Power Cord: BS 1363 to IEC320-C7 – EU Power Cord: CEE7/16 to IEC320-C7 – ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7 |
| Environmental | 0°C (32°F) to 40°C (104°F) – ambient |
| Certifications | FCC (Class B), IEC / CE, CB, UL, RoHS, RCM, UKCA, NDAA |
Additional Information
- “Inside The Box: The Netgate 6100” appliance breakdown video
- Quick Start Guide and other Manuals
- Ships with the latest version of pfSense Plus software
- Not PoE Compatible
- Ships with your choice of Australian, UK, EU or USA cords. Easily changed by purchasing compatible AC power cord with IEC320-C7 (2 PIN) plug (visual example)
- Optional wall mount available
- Note: This system uses the case as a heatsink, please be aware it may feel warm when in use
Your purchase includes all of these super neat things, which will help you get started with pfSense Plus software:
- Complimentary 24×7 zero-to-ping support from Netgate Global Support
- Access to the continuously updated pfSense online documentation
- ACB: Automatic Encrypted Configuration Backup Service
SUPPORT INFORMATION
- Technical assistance is available from Netgate Global Support 24x7x365.
- TAC Lite is included with the purchase of your Netgate appliance.
- TAC Pro and TAC Enterprise SLA descriptions and pricing are available here.
- Help is available on our community forum here.
WARRANTY INFORMATION
- One-year manufacturer’s hardware warranty information is here.
- Extended warranties for US customers are available from Extend. More information on their offer and warranty policy can be viewed here.
- Standard 30 day return policy. Netgate does not sell seconds or returns. An open box fee may apply.
- All specifications subject to change without notice
