Netgate 4200 MAX pfSense+ Security Gateway
2,952.00 AED Excl. of Tax
- 2 to 3 days-delivery
Speedy and reliable parcel delivery!
For Immediate delivery
For urgent delivery requirements, please contact our sales team. Standard shipping is typically within 2–3 days, with back-to-back orders taking 4–5 weeks. Product images are for illustrative purposes only.
Request a Quote
The Netgate® 4200 with pfSense® Plus software is the most versatile security gateway in its class. The 4200 utilizes the blazing fast performance of 4-core Intel® Atom® C1110 CPU to achieve benchmark results up to three times faster in routing, firewall forwarding and IPsec VPN than the previous generation of security gateways. The 4200 delivers over 9.2 Gbps of L3 routing across four independent 2.5 GbE flexible WAN/LAN ports.
The Netgate 4200 is ideal for pro-home, small/medium businesses, branch and edge deployments that require flexible port configurations to support 1 to 2.5 Gbps WAN capabilities across four discrete, unswitched 2.5 Gbps RJ-45 ethernet LAN ports – all in a silent desktop form factor.
L3 Forwarding
(Router)
- IPERF3 Traffic:Â 8.75 Gbps
- IMIX Traffic:Â 9.28 Gbps
Firewall
(10k ACLs)
- IPERF3 Traffic:Â 8.61 Gbps
- IMIX Traffic:Â 3.21 Gbps
IPsec VPN
(AES-GCM-128 w/AES-NI)
- IPERF3 Traffic:Â 3.2Â Gbps
- IMIX Traffic:Â 1.05 Gbps
Netgate 4200 performance tests conducted with pfSense Plus software version 23.09.1
CPU: Intel Atom C1110 with AVX2, 4-core @ 2.1 GHz. Delivers up to 3x on benchmarking results for routing, firewall and IPsec VPN versus the Netgate 4100.

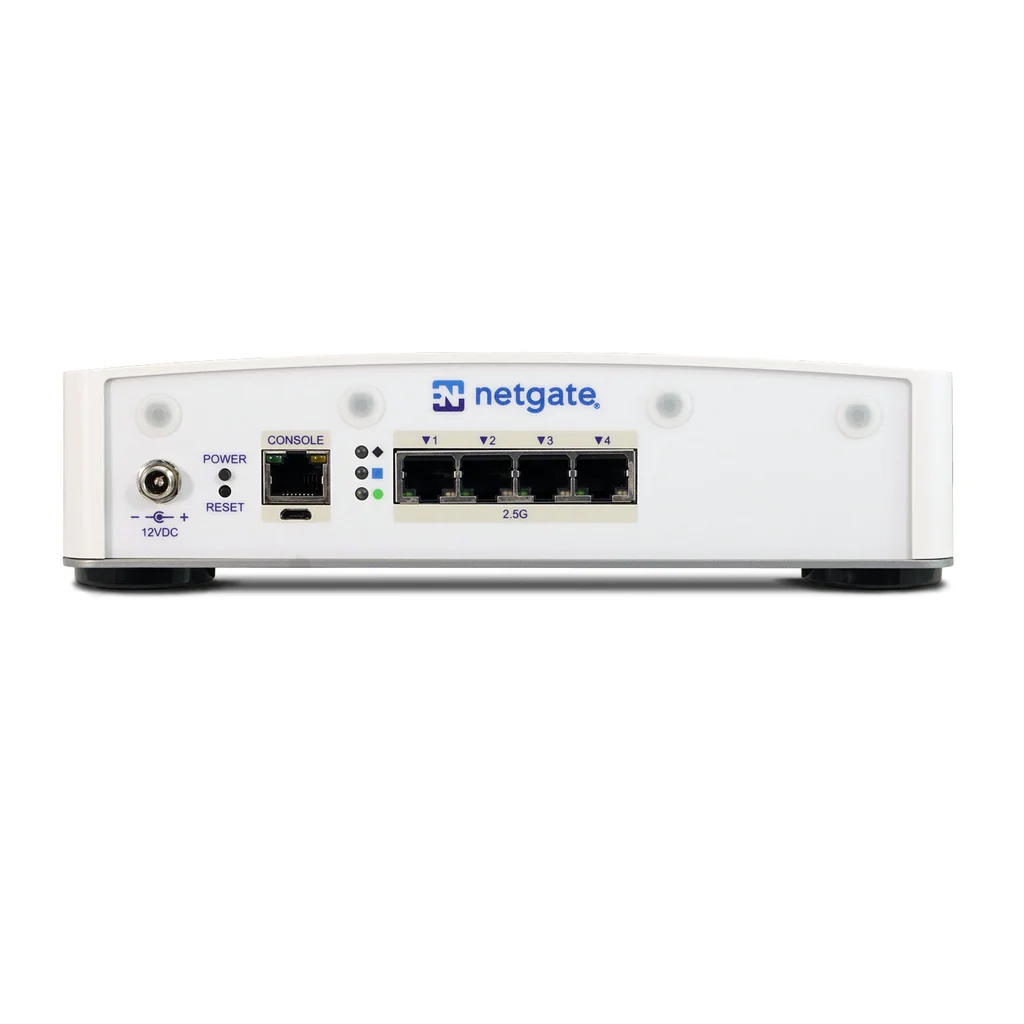

Network Ports:Â Four 2.5GÂ independent and configurable RJ45 LANÂ ports for maximum flexibility. Configure it for single or dual WAN, or high-availability failover.
Storage:Â 128 GB NVMe M.2 SSD
Memory:Â 4 GB LPDDR5 RAM. DDR5 memory allows more stable, higher transfer rates for memory-intensive applications (e.g. IDS/IPS).
Cooling: The passive cooling system and low power draw of the Netgate 4200 provides efficient thermal management and silent operation expected from smaller devices despite its significantly higher performance.
pfSense Plus software provides the performance, flexibility, reliability and business assurance expected from leading secure networking applications:
- Up to 10 Gbps performance
- Flexible 3rd-party application options
- Traditional management mechanisms
- Proven reliability
- Complete business assurance support
All at a fraction of the cost of proprietary alternatives, pfSense Plus software is the perfect answer. Popular pfSense Plus use cases include load balancing, traffic shaping, captive portal, UTM device, DNS/DHCP Server, IDS/IPS, failover WAN, and much more.
Specifications
| CPU | Intel Atom C1110 with AVX2, 4-core @Â 2.1 GHz |
| CPU Cores | 4-Core |
| Physical Network I/O ports | (4) 2.5 Gbps RJ-45 “direct” (unswitched) ethernet LAN ports |
| Storage | 128 GB NVMe M.2 SSD |
| Memory | 4 GB LPDDR5 |
| Physical Expansion Card Slots | 1x M.2 (B-key slot) USB 1x M.2 (B-key slot) x1 PCIe 3.0, USB 1x M.2 (M-key slot) x4 PCIe 4.0 |
| Console Port | 1x auto-detect console port: “Cisco pinout” RJ45 + micro-USB (micro-USB cable included with each system) |

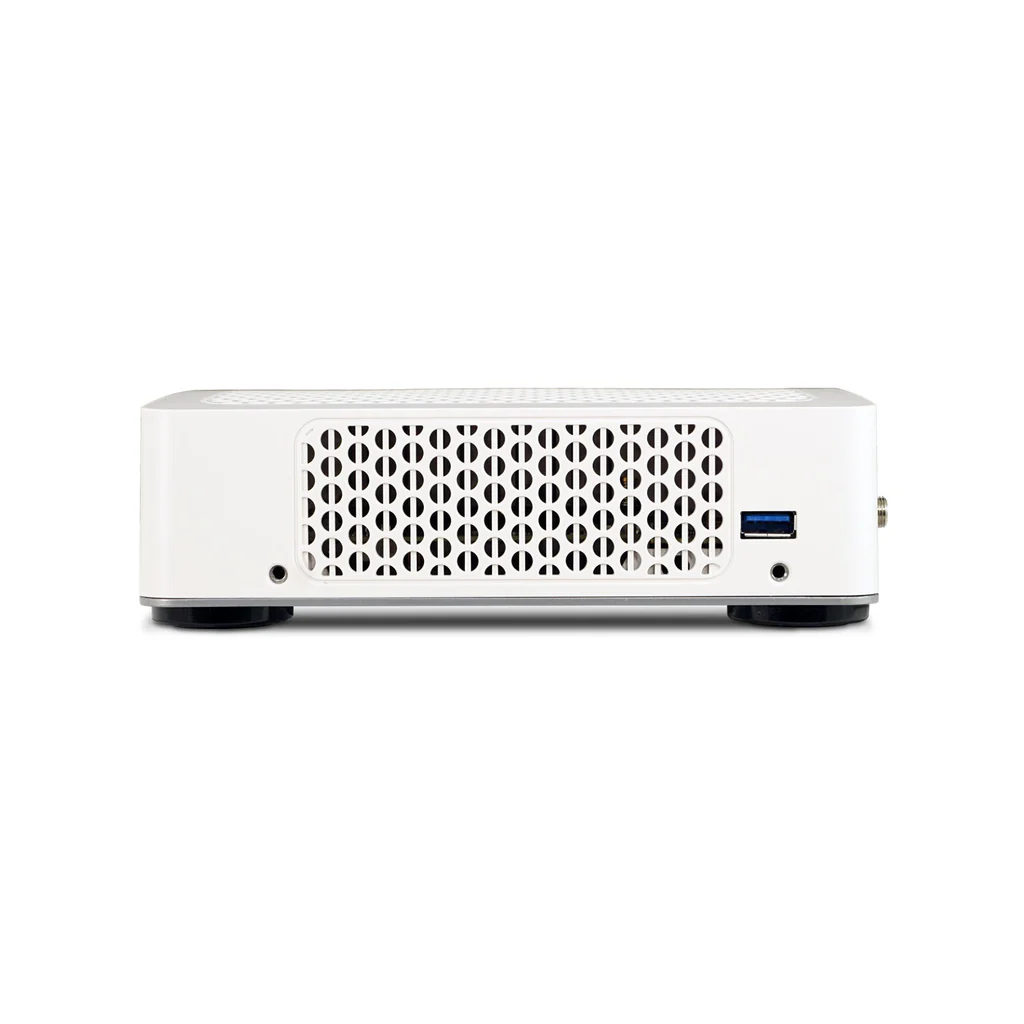

| USB Ports | 1x USB 3.0 jacks (USB-A female) Located on right side rear when viewed from system front |
| LED | 3x 3-color LEDs (RGB) Software / bootloader controllable via GPIO |
| Enclosure | Desktop – Aluminum, plastic, and steel enclosure. 8.66 x 7.1 x 2.3 inches 220 x 180 x 60 mm |
| Mounting | Optional wall mount kit |
| Cooling | Passive – integrated aluminum chassis and heatsink |
| Power | External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector – AC Inlet: IEC320-C7 (2 PIN) – – Power Cord: One US, UK, EU or ANZ power cord included. – US Power Cord: NEMA 1-15-P to IEC320-C7 – UK Power Cord: BS 1363 to IEC320-C7 – EU Power Cord: CEE7/16 to IEC320-C7 – ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7 |
| Environmental | 0°C (32°F) to 40°C (104°F) – ambient |
| Certifications | CE, CB, FCC (Class B), RoHS, CCATS, UL, RCM, UKCA, NDAA |
Additional Information
- Quick Start Guide and other Manuals
- Ships with the latest version of pfSense Plus software
- Not PoE Compatible
- Ships with your choice of Australian, UK, EU or USA cords. Easily changed by purchasing compatible AC power cord with IEC320-C7 (2 PIN) plug (visual example)
- Optional wall mount available soon
- Note: This system uses the case as a heatsink. Please be aware it may feel warm when in use
Your purchase includes many free services and free technical support, which will help you get started with pfSense Plus software:
- Complimentary software updates for the life of the product
- Complimentary 24×7 zero-to-ping support from Netgate Global Support
- Access to the continuously updated pfSense online documentation
- ACB: Automatic Encrypted Configuration Backup Service
SUPPORT INFORMATION
- Technical assistance is available from Netgate Global Support 24x7x365.
- TAC Lite is included with the purchase of your Netgate appliance.
- TAC Pro and TAC Enterprise SLA descriptions and pricing are available here.
- Help is available on our community forum here.
WARRANTY INFORMATION
- One-year manufacturer’s hardware warranty information is here.
- Extended warranties for US customers are available from Extend. More information on their offer and warranty policy can be viewed here.
- Standard 30 day return policy. Netgate does not sell seconds or returns. An open box fee may apply.
- All specifications subject to change without notice
