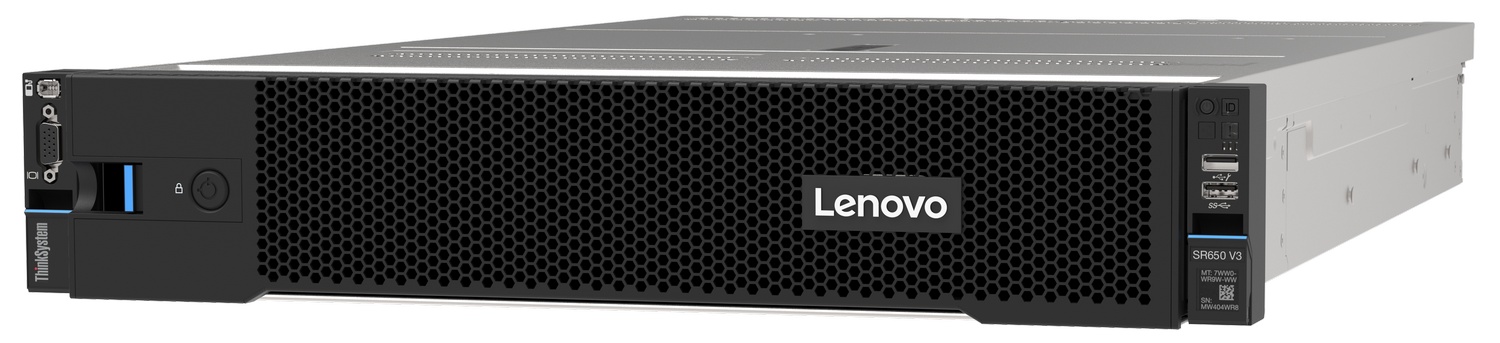

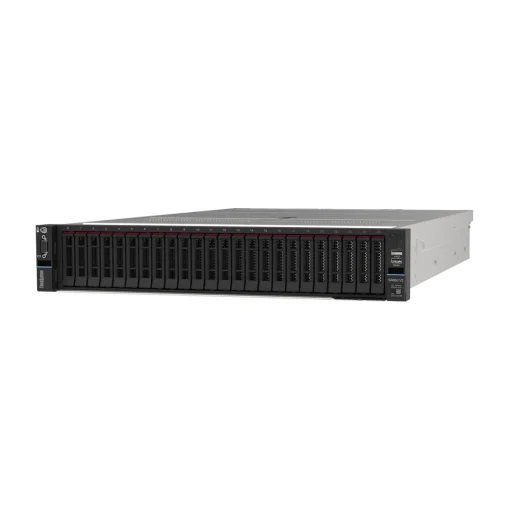

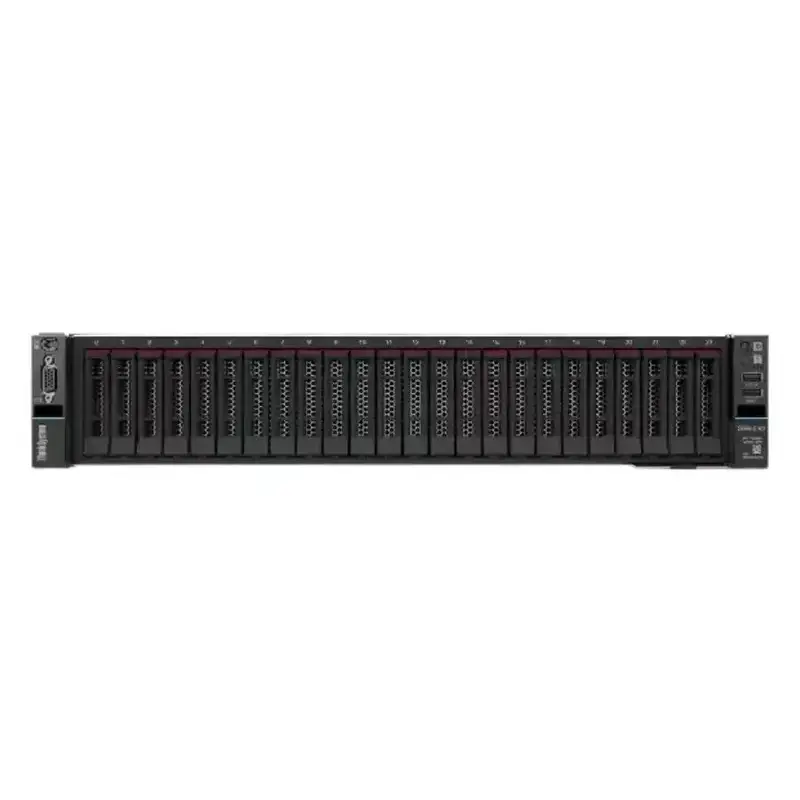

Lenovo SR650 V3 Xeon Silver 4510 (12C 2.4GHz 30MB Cache/150W), 64GB (1x64GB, 4800MHz 2Rx4 DDR5 RDIMM), 8 SAS/SATA, 940-8i, 1x1100W Titanium, 5 Standard Fans, XCC2 Platinum, Toolless V2 Rails,7D76A05JEA

2U rack server

Up to 2x 4^th Gen Intel^® Xeon^® Scalable processors, up to 60 cores and 350W TDP

Up to 8x single-width GPUs or 3x double-width GPUs

Supports up to 32x TruDDR5 3DS/RDIMMs

• Up to 20x 3.5″ or 40x 2.5″ drives

• Up to 36x NVMe drives supported with PCIe retimer adapters

• Rear: 2x 2.5″; 7mm SATA/NVMe hot-swap boot drives, support RAID

• Internal 2x M.2 SATA/NVMe boot drives, support RAID

• Direct NVMe, VROC/VMD, and onboard SATA with SW RAID (0,1,5,10)

Up to 12x PCIe 4.0/5.0 slots, 1x OCP 3.0 slot, 1x cabled internal

HBA/RAID adapter that doesn’t occupy a standard PCIe slot

LOM adapter installed in the OCP 3.0 slot, optional for front access Networking PCIe adapters

• Front: 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support, 1x VGA (optional), 1x external diagnostics handset port (optional)

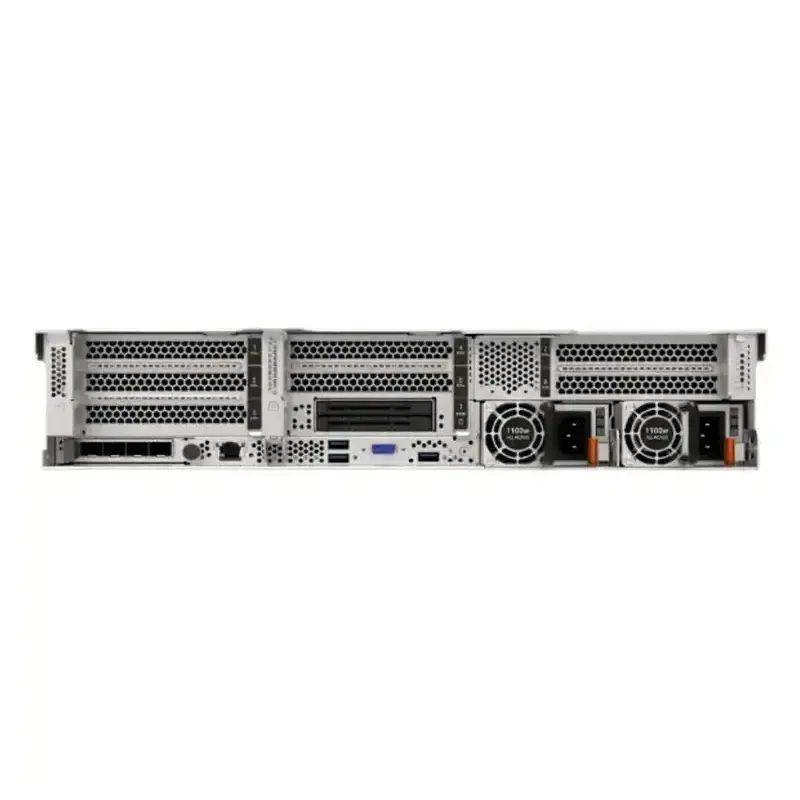

• Rear: 3x USB 3.1 G1, 1x VGA, 1x 1GbE RJ-45 (management), 2nd 1GbE management port (optional in OCP slot location), 1x Serial port (optional)

SATA with SW RAID (0,1,5,10); Common building blocks including standard and Internal PCIe RAID/HBA adapters.

Dual Redundant AC & DC (multiple wattages); Platinum & Titanium; 750W PT/TT, 1100W PT/TT, 1800W PT/TT, 2400W PT, 2600W TT and 1100W -48V DC PT

Lenovo XClarity Controller

Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for details.

1-year and 3-year customer replaceable unit and onsite service, next business day 9×5; optional service upgrades

Lenovopress.com/ds0143
