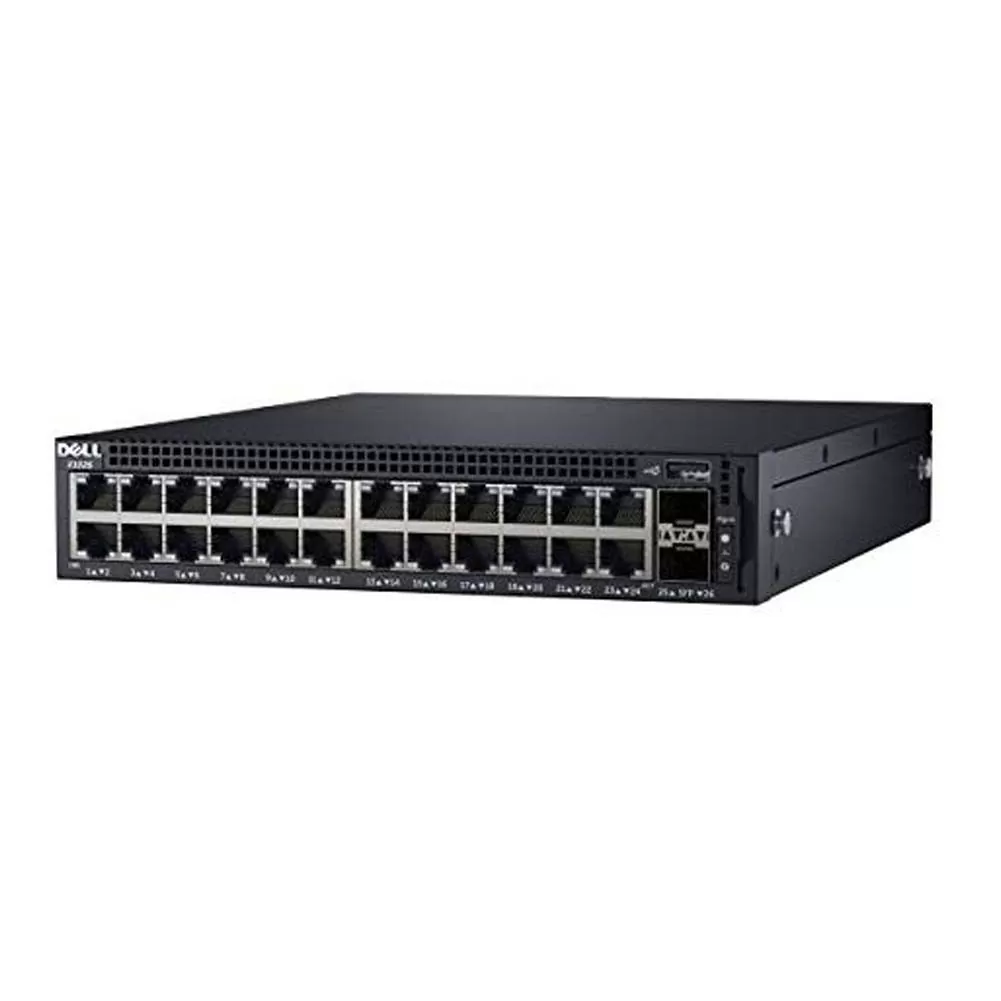

Dell Networking X1026P Smart Web Managed Switch, 24x 1GbE PoE (up to 12x PoE+) and 2x 1GbE SFP ports
For Immediate delivery contact the sales team. Usually, Ship in 2-3 days, back order ship in 4-12 Weeks, images are for illustration purposes only.
For Immediate delivery
For The Immediate delivery requirement contact sales team. Usually Ship in 2-3 days Back to Back 4-5 Weeks, images are for illustration purposes only.
Request a Quote
Pn: 210-1026P
Overview


Streamlined tools, step-by-step wizards and a customizable dashboard help you manage faster.
- Rapidly configure and tune network performance with purpose-built tools and wizards.
- Optimize traffic with automation — use point-and-click batch routines for specific applications such as unified communications.
- Gain visibility with a detailed dashboard providing a single, customizable view into common tasks, alerts, port status and network visualization.
- Skip the learning curve and use familiar commands and alerts similar to PCs and servers.
Enhanced network traffic visibility and troubleshooting reduces risk of network downtime.
• Monitor and resolve issues with “actionable monitoring,” a guided continuous workflow from issue identification to resolution.
• Reduce configuration errors and eliminate extra steps with help from multi-port batch routines and port profiles for common devices.
• Optimize cloud services and onsite network applications with security and traffic-priority features.

Brand |
Dell |
---|
Tech Specifications
Dell Networking X1026P | |
Legend: S — Standard, OA — Option Available, N — Not Available | |
Port Attributes | X1026P |
10/100/1000Base-T auto-sensing Gigabit Ethernet switching ports | 24 |
SFP 1Gb fiber ports | 2 |
Power over Ethernet (PoE) ports | 24 PoE/PoE+, up to 369W total |
PoE powered | N |
Performance | X1026P |
Switch fabric capacity: | Up to 52 Gbps |
Forwarding rate: | 38.7 Mpps |
Quality of Service | X1026P |
Priority queues per port | 4 |
Chassis | X1026P |
Dimensions (H x W x D) | 1.62 in x 8.23 in x 17.72 in (41.25 mm x 209.0 mm x 450.0 mm) |
Rack mount: | 1RU, half width |
Unit weight: | 3.80 Kg |
Fans: | 2 (rear) |
Power | X1026P |
Power supply | 450W |
Power (max) | 452.8W |
Power BTU/hr | 1564.3 |
