DE Controller DE2000H 8G HICless 2U24 SFF, Gen2,7Y71A00QWW
DE Controller DE2000H 8G HICless 2U24 SFF, Gen2,7Y71A00QWW 17,940.00 AED Excl. of Tax
DE Controller DE4000H 32GB HICless 2U24 SFF Gen2,7Y75A00TWW - Image 1
DE Controller DE4000H 32GB HICless 2U24 SFF Gen2,7Y75A00TWW - Image 2
Click to enlarge

    DE Controller DE4000H 32GB HICless 2U24 SFF Gen2,7Y75A00TWW

    22,540.00 AED Excl. of Tax

    Add to compare
    Add to wishlist
    • 2 to 3 days-delivery

    Speedy and reliable parcel delivery!

    SKU: 7Y75A00TWW Categories: , ,
    Brand: Lenovo

    For Immediate delivery

    For urgent delivery requirements, please contact our sales team. Standard shipping is typically within 2–3 days, with back-to-back orders taking 4–5 weeks. Product images are for illustrative purposes only.

    Please enable JavaScript in your browser to complete this form.
    Name

    Technical Specifications

    Attribute Specification
    Form factor
    • DE4000H 2U24 SFF controller enclosure (Machine Type 7Y75): 2U rack mount.
    • DE4000H 2U12 LFF controller enclosure (Machine Type 7Y74): 2U rack mount.

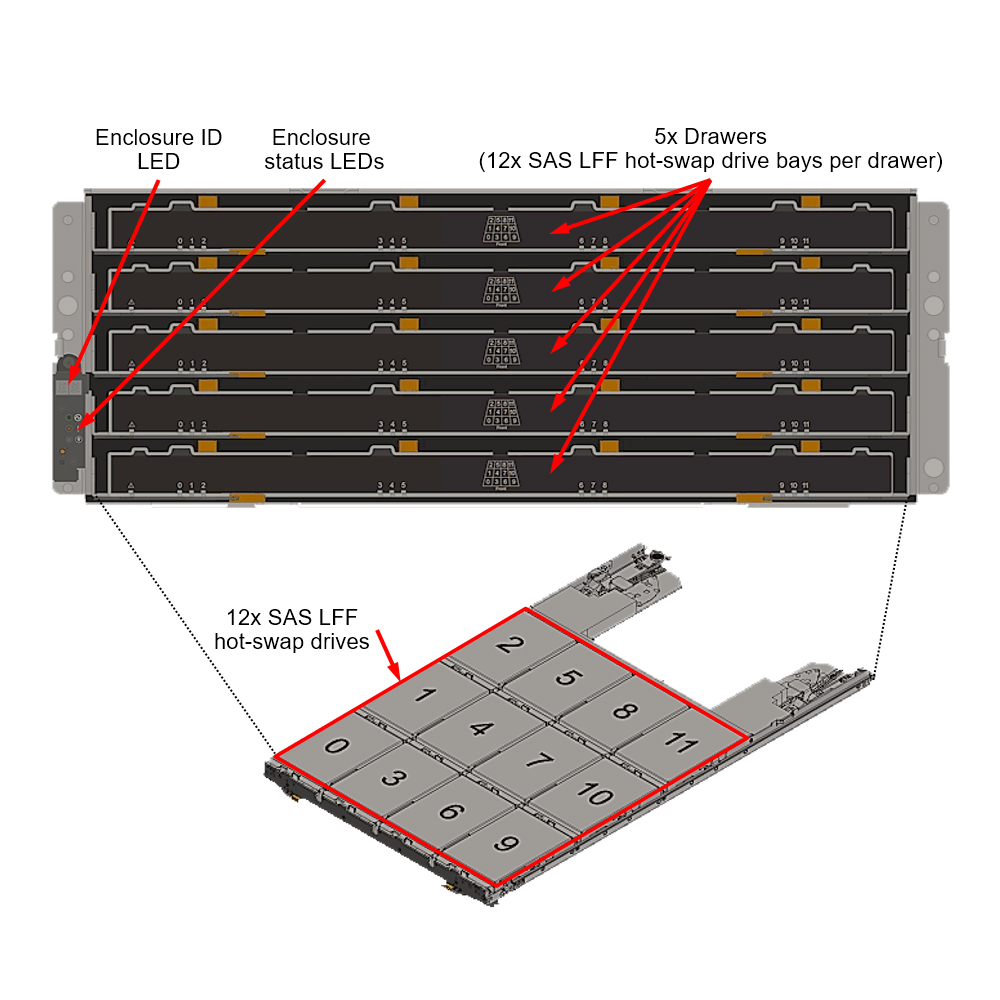

    • DE4000H 4U60 LFF controller enclosure (Machine Type 7Y77): 4U rack mount.
    • DE240S 2U24 SFF expansion enclosure (Machine Type 7Y68): 2U rack mount.
    • DE120S 2U12 LFF expansion enclosure (Machine Type 7Y63): 2U rack mount.
    • DE600S 4U60 LFF expansion enclosure (Machine Type 7Y69): 4U rack mount.
    Controller configuration Dual active-active controller configuration with automatic load balancing.
    RAID levels RAID 0, 1, 3, 5, 6, and 10; Dynamic Disk Pools.
    Note: RAID 3 can be configured only through the CLI.
    Controller system memory 16 GB or 64 GB per system (8 GB or 32 GB per controller). Cache mirroring between the controllers. Flash-backed cache protection (includes battery for destaging to flash).
    Expansion enclosure support
    • DE4000H 2U24 SFF controller: 3x DE120S, 3x DE240S or 2x DE600S
    • DE4000H 2U12 LFF controller: 7x DE120S, 3x DE240S or 3x DE600S
    • DE4000H 4U60 LFF controller: 7x DE120S, 3x DE240S or 3x DE600S
    • Expansion enclosures may be mixed up to a maximum of 7 expansion enclosures
    Drive bays DE4000H 2U24 SFF controller:

    • With 3x DE120S LFF expansion enclosures: 24 SFF + 36 LFF drive bays
    • With 3x DE240S SFF expansion enclosures: 96 SFF drive bays
    • With 2x DE600S LFF expansion enclosures: 24 SFF + 120 LFF drive bays

    DE4000H 2U12 LFF controller:

    • With 7x DE120S LFF expansion enclosures: 96 LFF drive bays
    • With 3x DE240S SFF expansion enclosures: 12 LFF + 72 SFF drive bays
    • With 3x DE600S LFF expansion enclosures: 192 LFF drive bays

    DE4000H 4U60 LFF controller:

    • With 3x DE120S LFF expansion enclosures: 96 LFF drive bays
    • With 3x DE240S SFF expansion enclosures: 60 LFF + 72 SFF drive bays
    • With 2x DE600S LFF expansion enclosures: 180 LFF drive bays

    Expansion enclosures may be mixed up to a maximum of 7 expansion enclosures
    Drive technology
    • 12 Gb SAS and NL SAS HDDs and FIPS HDDs, 12 Gb SAS SSDs and FIPS SSDs.
    • Intermix of HDDs and SSDs is supported within a system.
    • Intermix of HDDs and SSDs is not supported within a volume group or disk pool.
    • A maximum of 120 SAS SSDs is supported.
    • Intermix of FIPS drives and non-FIPS drives is supported within a system.
    • Intermix of FIPS drives and non-FIPS drives is not supported within a volume group or disk pool.
    Drive expansion connectivity
    • 2x 12 Gb SAS x4 (Mini-SAS HD SFF-8644) expansion ports on each of two controllers in the controller enclosure for the attachment of the expansion enclosures.
    • 4x 12 Gb SAS x4 (Mini-SAS HD SFF-8644) expansion ports on each of two I/O modules in the expansion enclosure for the attachment to the controller enclosure and daisy chaining of the expansion enclosures.
    Drives 2U24 SFF drives:

    • 10K rpm SAS HDDs
    • 10K rpm SAS FIPS HDDs
    • SAS SSDs (1 DWD)
    • SAS SSDs (3 DWD)
    • SAS FIPS SSDs (3 DWD)

    2U12 LFF drives:

    • 7.2K rpm NL SAS HDDs
    • 7.2K rpm NL SAS FIPS HDDs
    • SAS SSDs (3 DWD)
    • SAS FIPS SSDs (3 DWD)

    4U60 LFF drives:

    • 7.2K rpm NL SAS HDDs
    • 7.2K rpm NL SAS FIPS HDDs
    • SAS SSDs (3 DWD)
    • SAS FIPS SSDs (3 DWD)
    Storage capacity Up to 3.375 PB (192x 18 TB LFF HDDs).
    Host connectivity Host connectivity ports provided using host interface cards (HICs) (per controller enclosure with two controllers):

    • 8x 12 Gb SAS host ports (Mini-SAS HD, SFF-8644) (4 ports per controller)
    • 8x 10/25 Gb iSCSI SFP28 host ports (DAC or SW fiber optics [LC]) (4 ports per controller)
    • 8x 8/16/32 Gb FC SFP+ host ports (SW fiber optics [LC]) (4 ports per controller)

    Note: Two host interface cards are required for selection (one per controller). The controllers no longer offers base ports. Host connectivity is provided via the HICs.
    Host operating systems Microsoft Windows Server; Red Hat Enterprise Linux (RHEL); SUSE Linux Enterprise Server (SLES); VMware vSphere.
    Standard software features Dynamic Disk Pools, SSD read cache, snapshots (up to 128 targets), volume copy, thin provisioning (DDP only), encryption (requires optional FIPS drives), and data assurance.
    Optional software features Snapshots (up to 512 targets), synchronous mirroring, and asynchronous mirroring.
    Performance*
    • Up to 300 000 random read IOPS (4 KB blocks).
    • Up to 109 000 random write IOPS (4 KB blocks).
    • Up to 9.2 GBps sequential read throughput (64 KB blocks).
    • Up to 2.7 GBps sequential write throughput (64 KB blocks).
    Configuration maximums**
    • Maximum storage capacity: 3.07 PB
    • Maximum number of logical volumes: 512
    • Maximum logical volume size: 2 PB
    • Maximum thin-provisioned logical volume size (DDP only): 256 TB
    • Maximum number of drives in a RAID volume group:
      • RAID 0, 1/10: 192
      • RAID 3, 5, 6: 30
    • Maximum number of DDP arrays: 20
    • Maximum number of drives in a DDP array: 192 (11 drives minimum)
    • Maximum SSD read cache size:
      • DE4000 8GB Controller: 4 TB SSD read cache
      • DE4000 32GB Controller: 5 TB SSD read cache
    • Maximum number of hosts: 256
    • Maximum number of snapshots: 512 (requires an optional license)
    • Maximum number of mirroring pairs: 32 (requires an optional license)
    Cooling Redundant cooling with two cooling modules (4U60 LFF) or with the fans that are built into power supplies (2U24 SFF and 2U12 LFF).
    Power supply Two redundant hot-swap 913 W (100 – 240 V) (2U24 and 2U12 enclosures) or 2325 W (200 – 240 V) (4U60 enclosures) Platinum AC power supplies.
    Hot-swap parts Controllers, I/O modules, drives, power supplies, cooling modules (4U60 LFF only), and SFP+/SFP28 transceivers.
    Management ports
    • 1x 1 GbE port (UTP, RJ-45) per controller for out-of-band management.
    • 2x Serial console ports (RJ-45 and Micro-USB) for system configuration.
    • In-band management via I/O path.
    Management interfaces System Manager web-based GUI; SAN Manager standalone GUI; SSH CLI; Serial console CLI; SMI-S Provider; SNMP, email, and syslog alerts; optional Lenovo XClarity.
    Security features Secure Socket Layer (SSL), Secure Shell (SSH), user level security, role-based access control (RBAC), LDAP authentication.
    Warranty and support Three-year customer-replaceable unit and onsite limited warranty with 9×5 next business day (NBD) parts delivered. Also available are 9×5 NBD onsite response, 24×7 coverage with 2-hour or 4-hour onsite response, or 6-hour or 24-hour committed repair (select areas), YourDrive YourData, Premier Support, and 1-year or 2-year post-warranty extensions.
    Software maintenance Included in the base warranty and any Lenovo warranty extensions.
    Dimensions 2U24 SFF enclosure:

    • Height: 85 mm (3.4 in.)
    • Width: 449 mm (17.7 in.)
    • Depth: 553 mm (21.8 in.)

    2U12 LFF enclosure:

    • Height: 85 mm (3.4 in.)
    • Width: 447 mm (17.6 in.)
    • Depth: 483 mm (19.0 in.)

    4U60 LFF enclosure:

    • Height: 174 mm (6.9 in.)
    • Width: 449 mm (17.7 in.)
    • Depth: 922 mm (36.3 in.)
    Weight
    • DE4000H 2U24 SFF controller enclosure (7Y75): 24.59 kg (54.2 lb)
    • DE4000H 2U12 LFF controller enclosure (7Y74): 28.78 kg (63.4 lb)
    • DE4000H 4U60 LFF controller enclosure (7Y77): 108.07 kg (238.3 lb)
    • DE240S 2U24 SFF expansion enclosure (7Y68): 27.44 kg (60.5 lb)
    • DE120S 2U12 LFF expansion enclosure (7Y63): 27.12 kg (59.8 lb)
    • DE600S 4U60 LFF expansion enclosure (7Y69): 112.2 kg (247.4 lb)
