Easy Rack 800mm/42U/1200mm with Roof, Side panel,castors,feet and 4 Brackets, No Bottom, black | ER8222
APC Easy Rack ER8222 is a high-capacity 42U rack enclosure designed for data center, converged, and hyperconverged IT environments. Featuring an 800mm wide by 1200mm deep footprint, ventilated doors with 81% perforation, integrated cable management capabilities, and load capacities of up to 1200kg static and 600kg dynamic, this enclosure provides ample space for deep servers, storage systems, and vertical accessories while ensuring efficient airflow and simplified deployment.
- 42U rack enclosure with 800mm width and 1200mm depth
- Designed for data center, converged, and hyperconverged IT environments
- Ventilated front and rear doors with 81% perforation for enhanced airflow
- Supports up to 1200kg static load and 600kg dynamic load
- Accommodates deep IT equipment and vertical mounting accessories
- Includes roof, side panels, castors, levelling feet, mounting hardware, and four PDU mounting brackets
- Integrated vertical 1U accessory mounting spaces and rear toolless accessory brackets
- Ships fully assembled or can be supplied unassembled for easier transport and storage
6,074.43 AED Excl. of Tax
- 2 to 3 days-delivery
Speedy and reliable parcel delivery!
For Immediate delivery
For urgent delivery requirements, please contact our sales team. Standard shipping is typically within 2–3 days, with back-to-back orders taking 4–5 weeks. Product images are for illustrative purposes only.
Request a Quote
Documents
Click Here For Product Data Sheet
Product Description

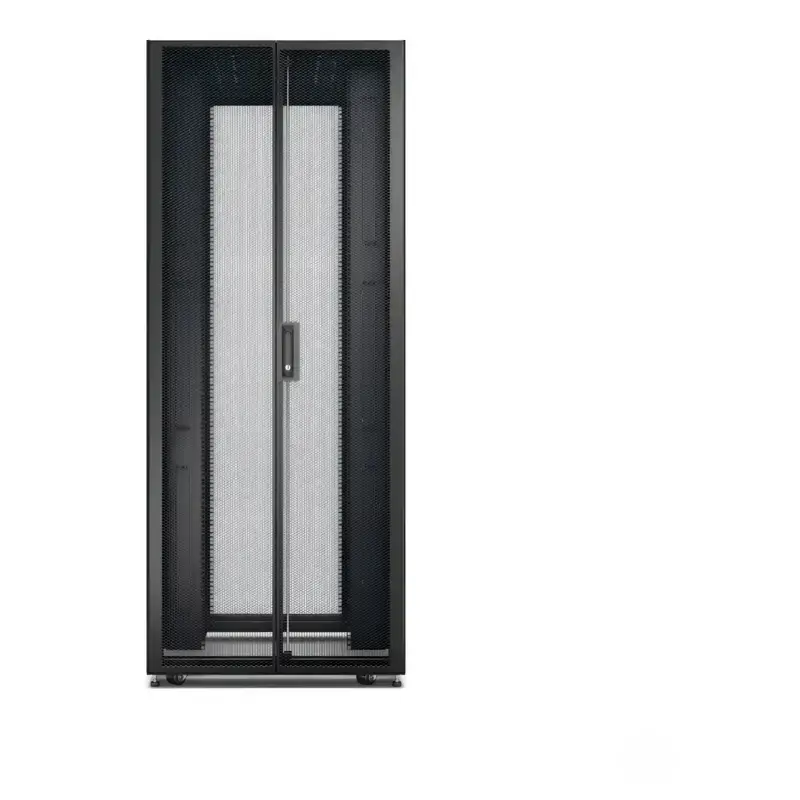

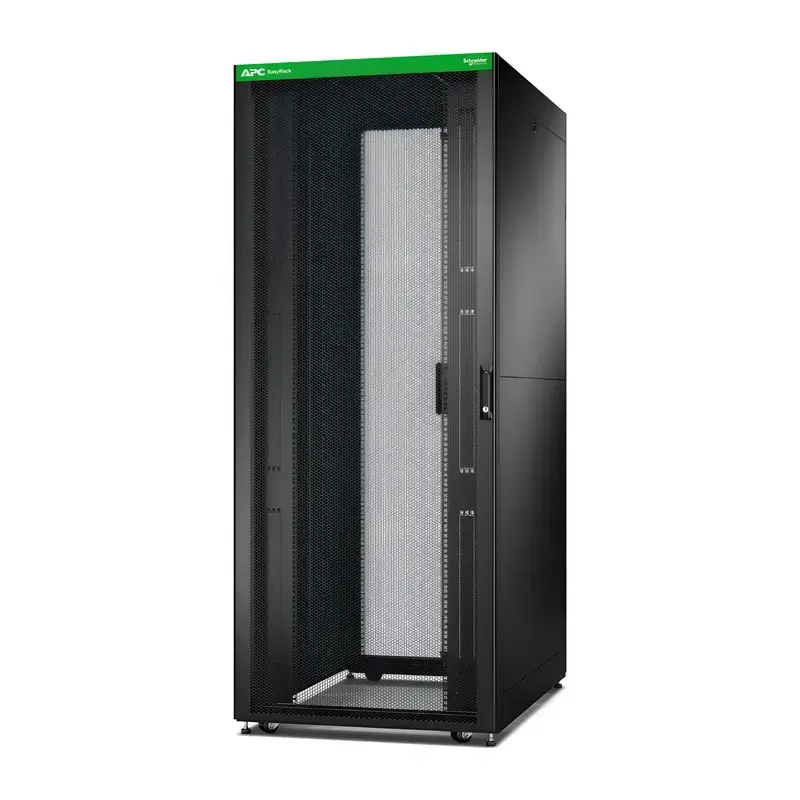

APC Easy Rack ER8222
The APC Easy Rack ER8222 is an EIA-310 compliant rack enclosure engineered for modern data center, networking, and converged infrastructure deployments. Combining a spacious design with integrated cable management and cooling features, it offers a practical and scalable solution for supporting high-density IT environments.
With a height of 42U, a width of 800mm, and an extended depth of 1200mm, the ER8222 provides sufficient space to accommodate even the deepest servers, storage systems, and vertically mounted accessories. The enclosure features ventilated front and rear doors with 81% perforation, promoting efficient airflow to help maintain optimal operating temperatures for installed equipment. It supports static loads of up to 1200kg and dynamic loads of up to 600kg.
The enclosure is supplied with a roof, side panels, keys, levelling feet, castors, mounting hardware, and four PDU mounting brackets, while omitting a bottom panel to provide greater flexibility for cable entry and infrastructure customization. Its wide 800mm design creates additional room for cable routing and simplifies cable management in dense server and networking applications.
Designed for deployment flexibility, the ER8222 ships fully assembled for rapid installation but can also be supplied unassembled for easier transportation, storage, or movement through restricted spaces. A multifunctional roof supports cable management and proper airflow, while rear accessory brackets allow compatible accessories to be installed without tools.
The enclosure also incorporates integrated vertical 1U mounting spaces adjacent to the standard EIA-310 mounting rails. These sections can be removed and replaced with compatible 1U accessories, enabling further customization and improved rack organization. Compatible with APC Easy Rack cooling solutions, cable management accessories, and Easy Rack PDUs, the ER8222 delivers a comprehensive and adaptable platform for growing IT infrastructures.
Key Features
- 42U rack enclosure with 800mm width and 1200mm depth
- Designed for data center, converged, and hyperconverged IT environments
- Ventilated front and rear doors with 81% perforation for enhanced airflow
- Supports up to 1200kg static load and 600kg dynamic load
- Accommodates deep IT equipment and vertical mounting accessories
- Includes roof, side panels, castors, levelling feet, mounting hardware, and four PDU mounting brackets
- Integrated vertical 1U accessory mounting spaces and rear toolless accessory brackets
- Ships fully assembled or can be supplied unassembled for easier transport and storage
TECHNICAL SPECIFICATIONS
Click Here For Product Data Sheet
Main |
|
| Product or component type | Rack enclosure |
| Number of rack unit | 42U |
| Provided equipment | Baying hardware |
| Key(s) | |
| Keyed-alike doors and side panels | |
| Leveling feet | |
| Mounting hardware | |
| Pre-installed casters | |
| Side panels | |
Physical |
|
| Height | 1991 mm |
| Width | 800 mm |
| Depth | 1200 mm |
| Product weight | 135 kg |
| Colour | Black |
| Mounting mode | Not rack-mountable |
| Maximum mounting depth | 1041.4 mm |
| Minimum mounting depth | 241.6 mm |
| Rack width | 19″ |
| Marking | 18 gauge front door |
| 19 gauge rear door | |
| 16 gauge post | |
| 14 gauge EIA mounting rail | |
| Permanent permissible load | 1199.8 kg static |
| 599.6 kg dynamic | |
Conformance |
|
| Standards | UL 2416 |
| EIA-310E | |
Packing Units |
|
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 212 cm |
| Package 1 Width | 125 cm |
| Package 1 Length | 85 cm |
| Package 1 Weight | 144 kg |
| Pallet layers | 1 |
Contractual warranty |
|
| Warranty (in months) | 60 |
